Mexen C22 panel radiator 300 x 1600 mm, side connection, 1493 W, white - W422-030-160-00

The Mexen C22 panel radiator is an ideal solution for efficient interior heating. With a heating power of up to 1493 W at 75/65/20 °C, it provides comfort even on cold days. Its compact dimensions - height 300 mm and width 1600 mm - make it a perfect fit for various rooms. The radiator is made of durable steel, and its white RAL 9016 finish adds elegance. The product has a high-quality paint coating compliant with DIN 99500 and a maximum working pressure of 10 bar. An additional feature is the side cover and removable top cover. The set includes hangers, an installation kit, sealing plugs, and a venting plug.

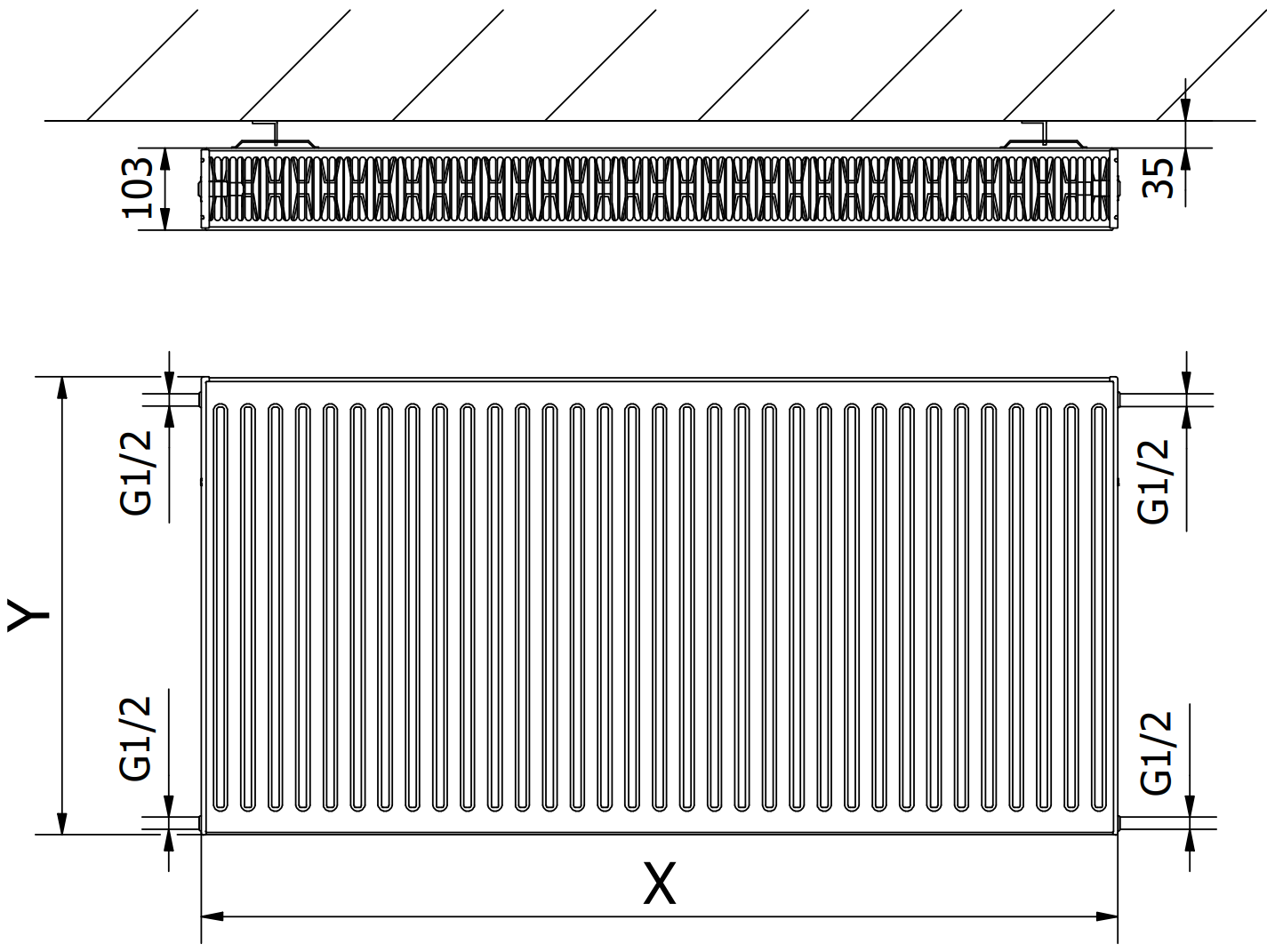

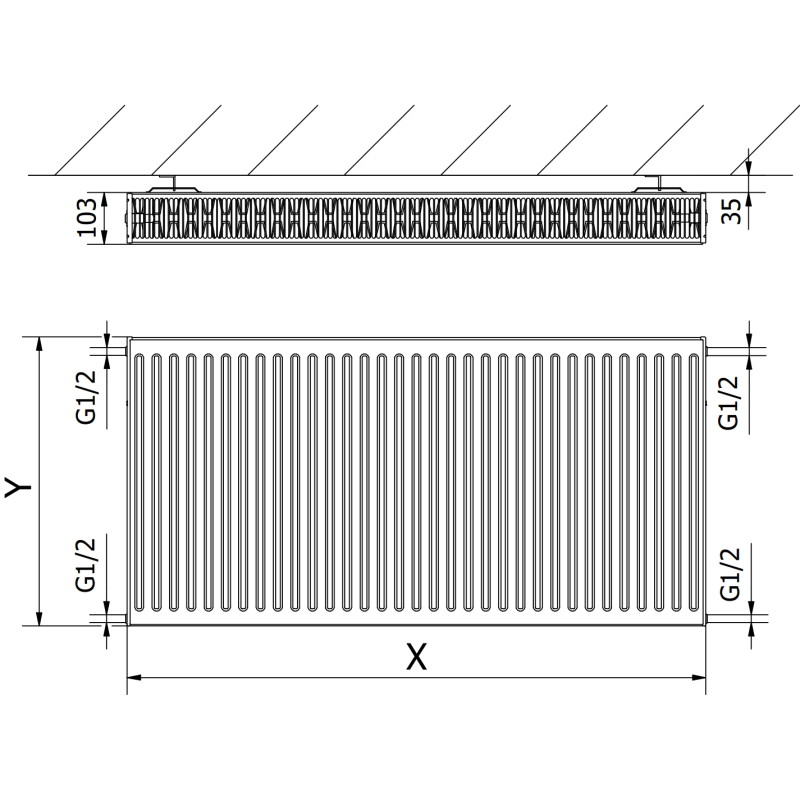

Technical data:

Height (Y): 300 mm

Width (X): 1600 mm

Depth: 103 mm

Connection spacing: 25 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Weight: 23.39 kg

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 774 W

- 75/65/20 °C 1493 W

- 90/70/20 °C 1887 W

Connections:

- 4xG ½″ side

High quality, durable paint coating - DIN 99500

Includes side cover and removable top cover

Includes: hangers, installation kit, sealing plugs and venting plug

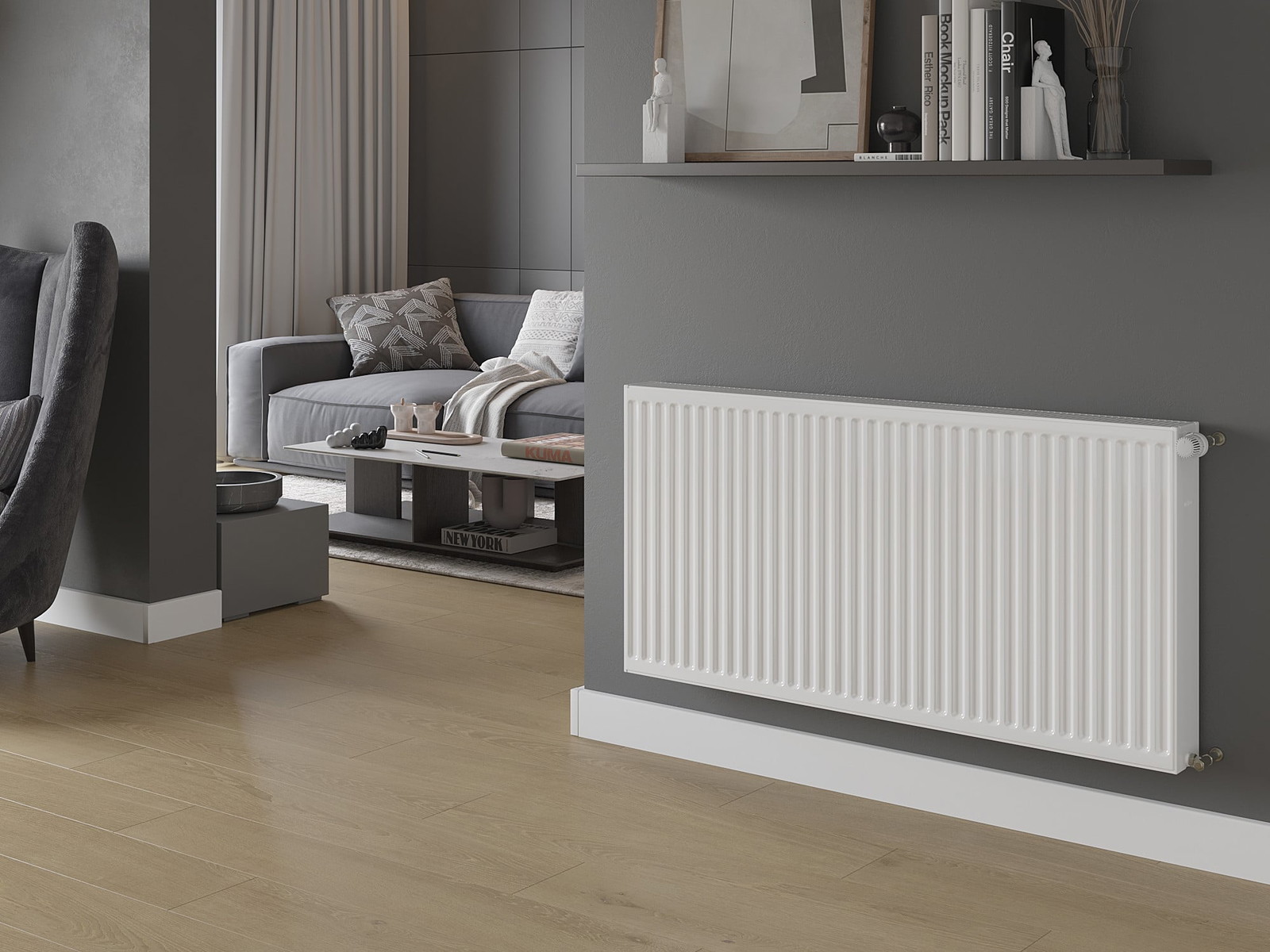

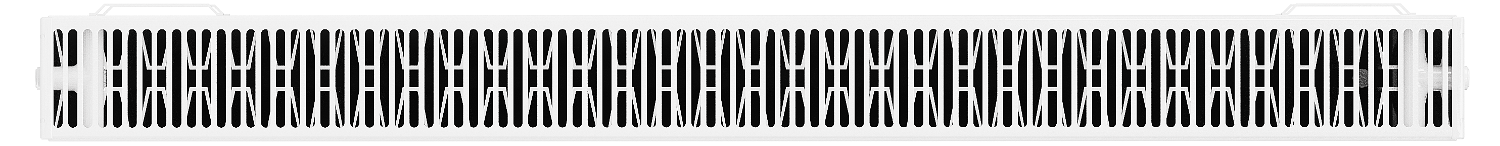

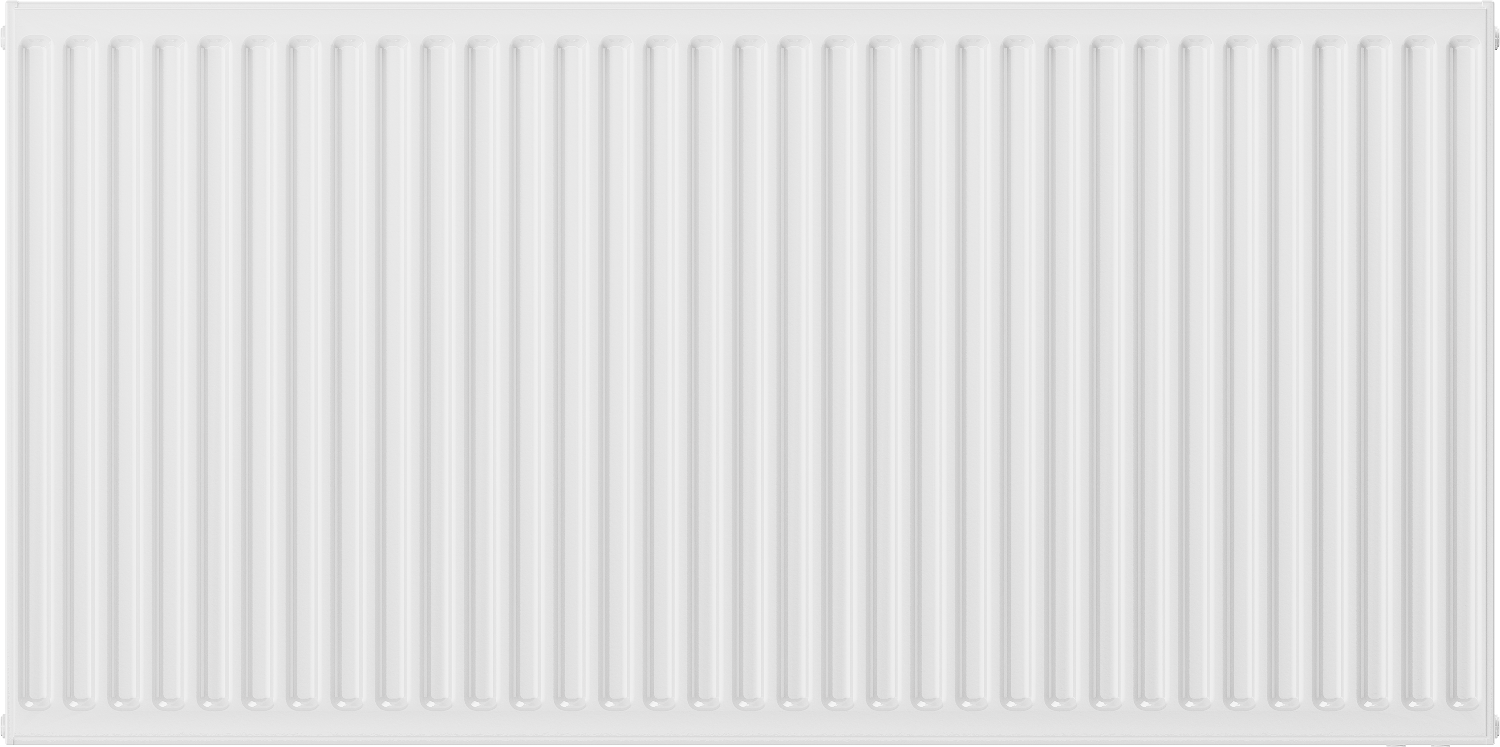

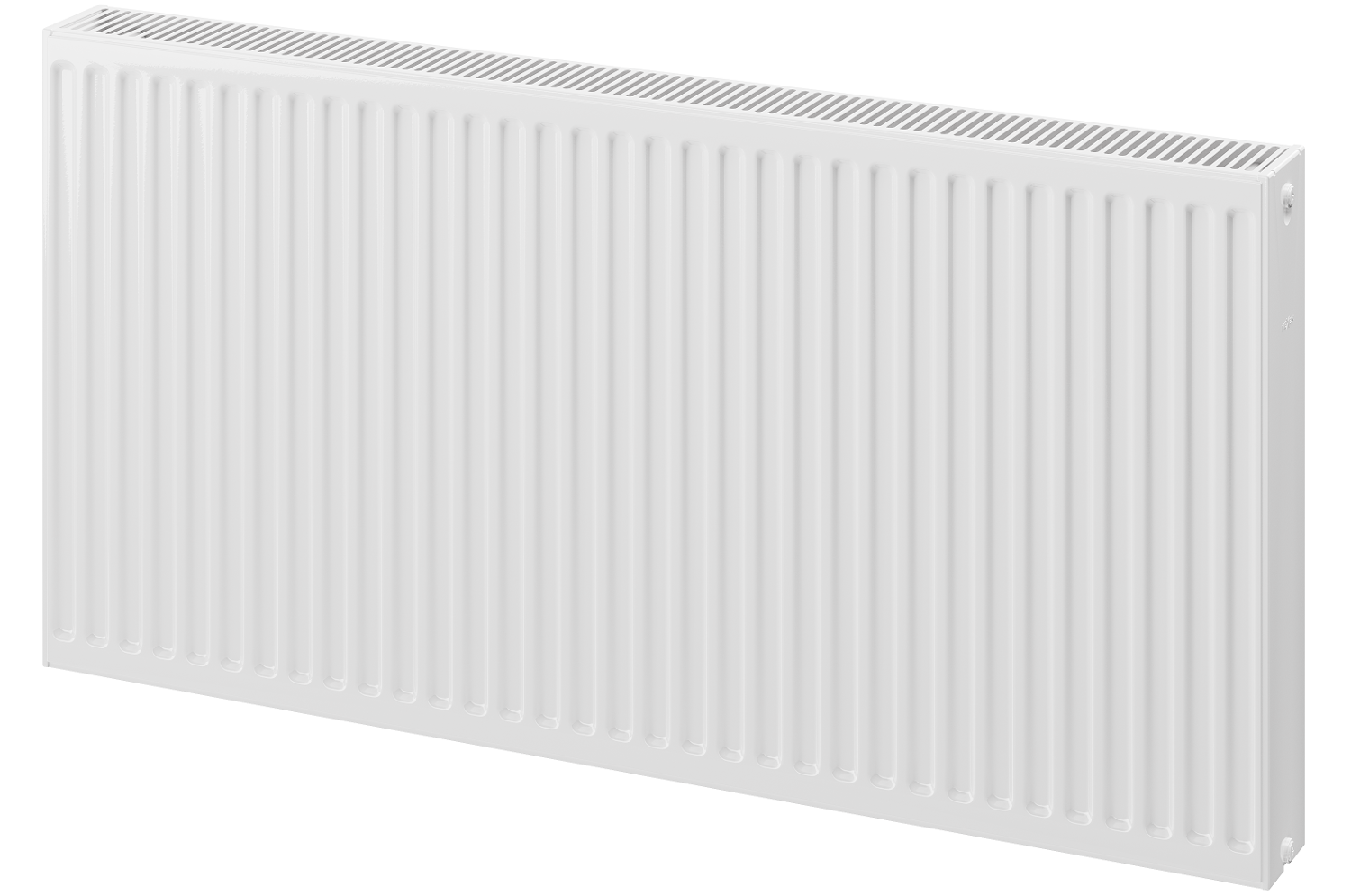

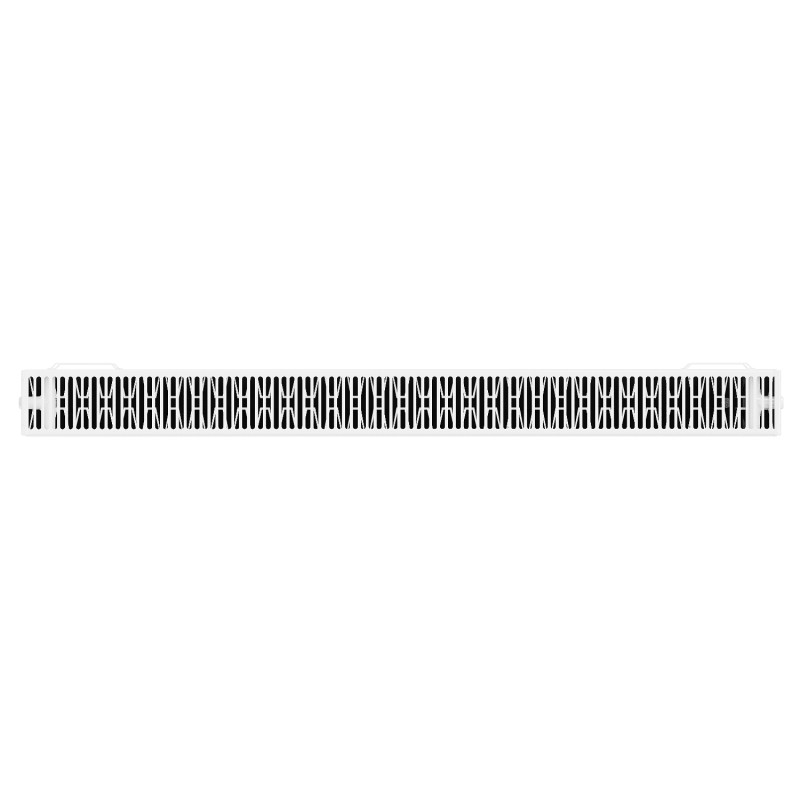

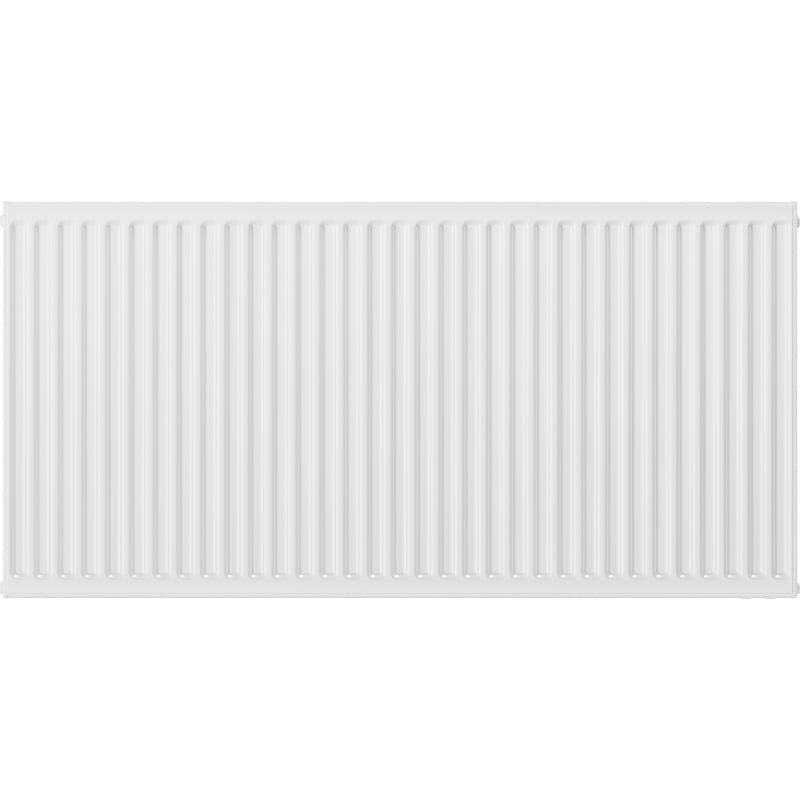

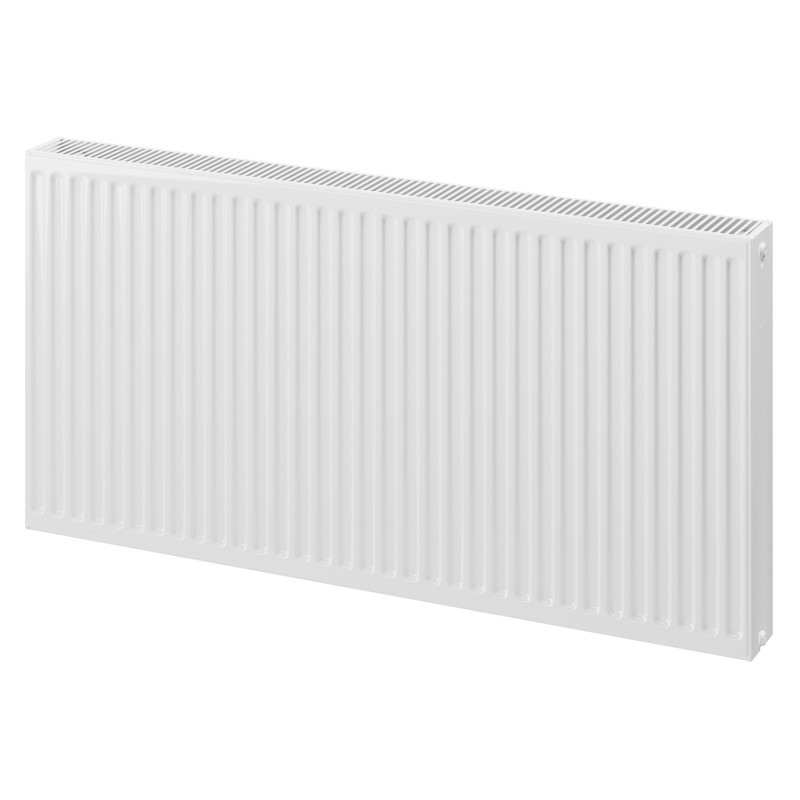

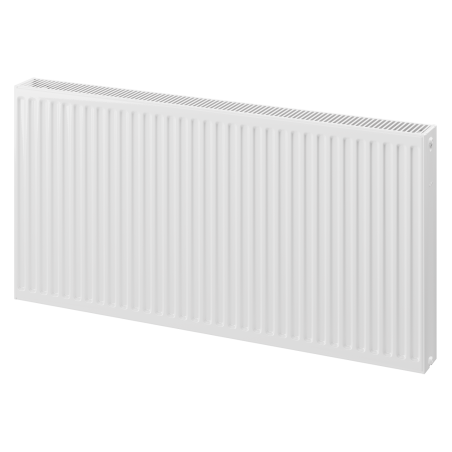

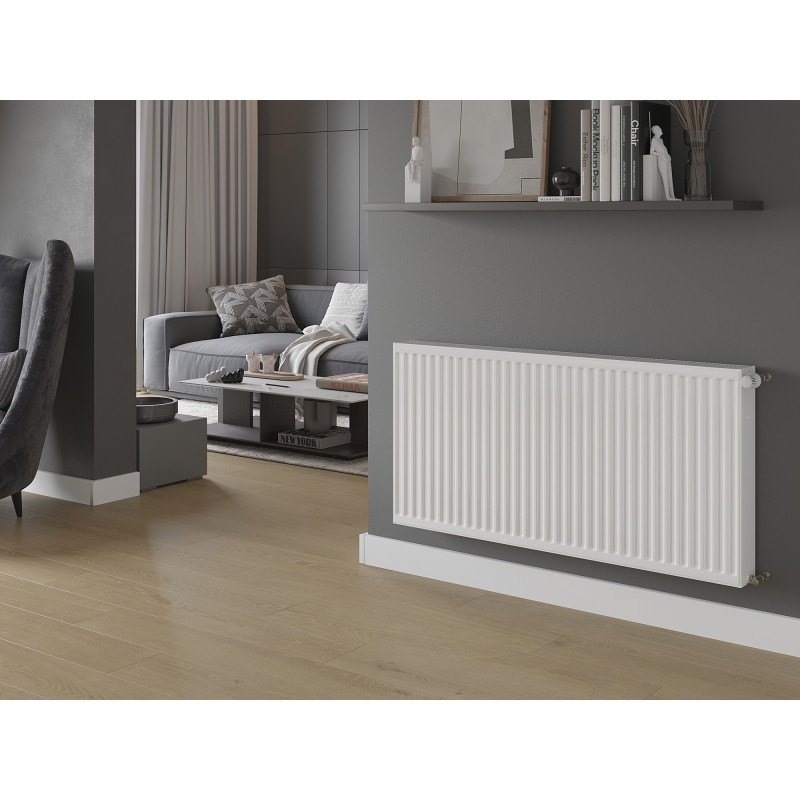

Pictures show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

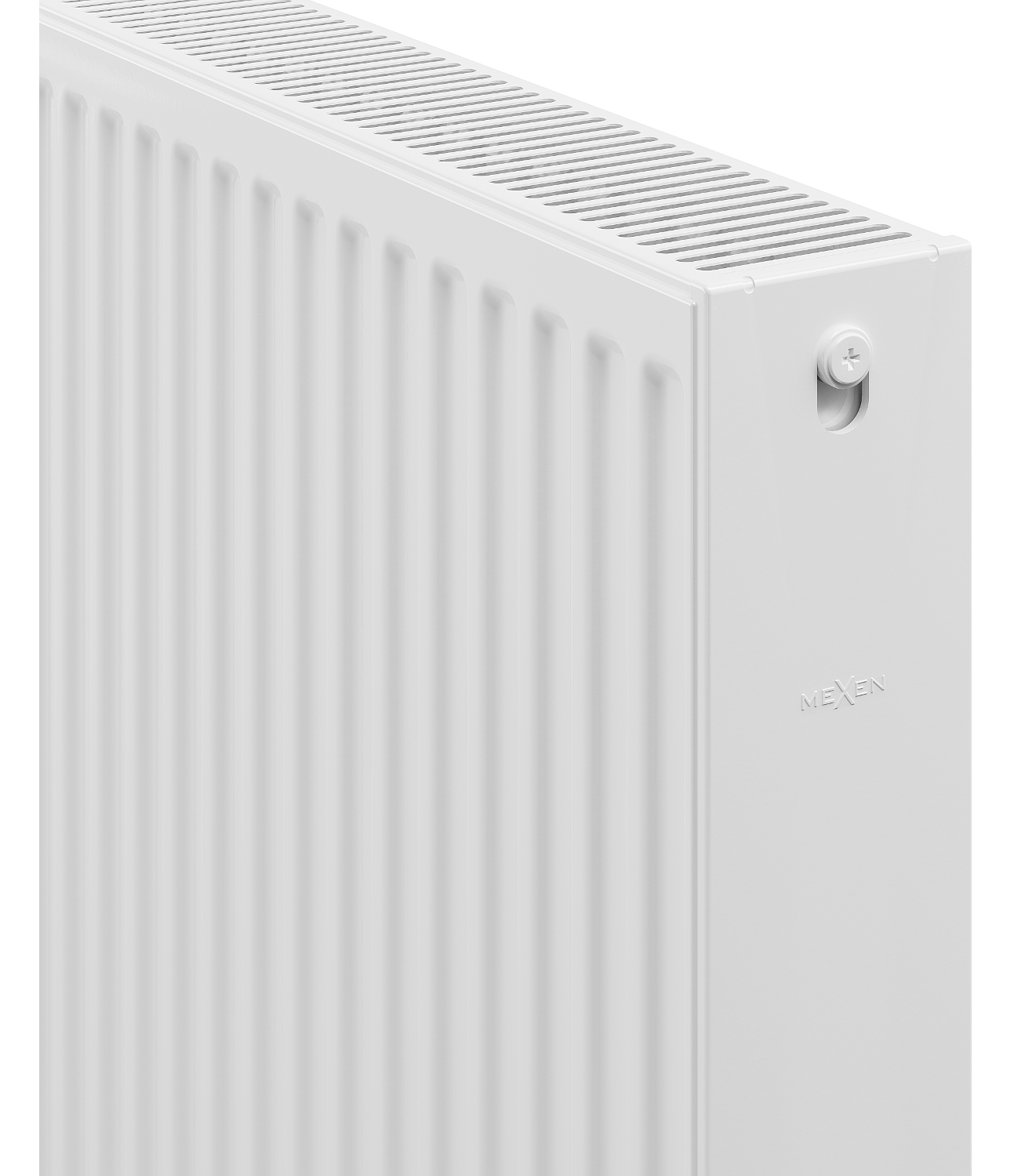

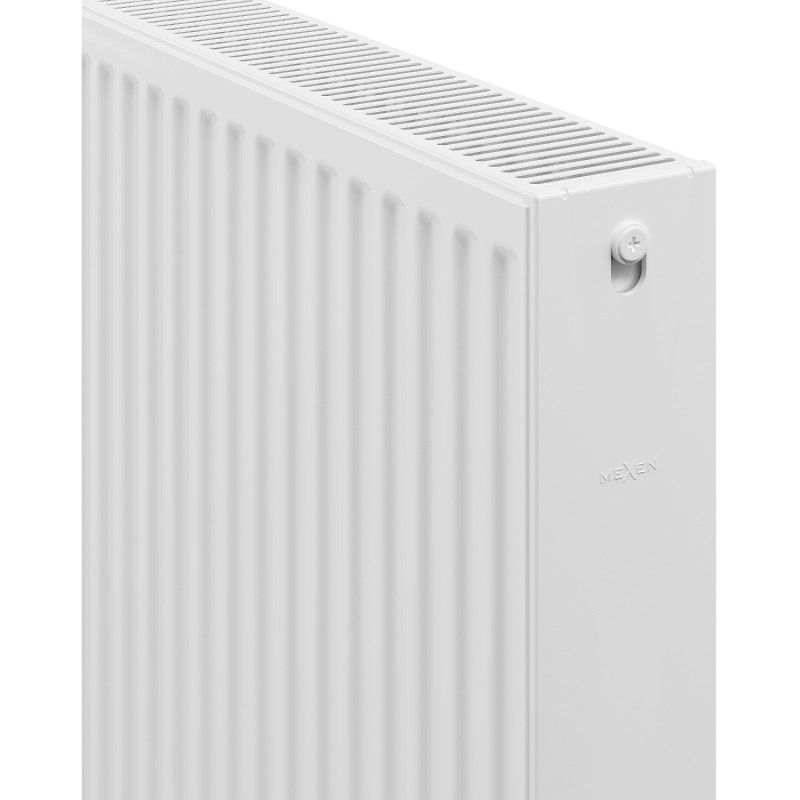

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 MPa

The maximum working pressure is 1 MPa (10 bar). This means that the radiator can operate safely and efficiently under standard operating conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. This allows for effective and efficient heating of the room while ensuring the safety of users and the surfaces surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - it indicates that it does not negatively affect human health or the natural environment in any way. nr B.BK.60112.0464.2022 valid until 13.02.2028

Series
C22
Width
1600 mm
Height
300 mm
Depth
103 mm
Type
Plate / Panel
Heating power
1493 W
Color
White
Material
Steel
Type
22
Mounting side
Universal
Connection spacing
25 cm
Connection
Side
Orientation
Horizontal
