Mexen C11 plate radiator 600 x 800 mm, side connection, 747 W, white - W411-060-080-00

Mexen C11 is a plate radiator with dimensions 600 x 800 mm with side connection, ideal for any interior. With a heating power of up to 747 W, it provides fast and efficient room heating. It features high quality and a durable paint coating according to DIN 99500 standard and a white color RAL 9016. The steel construction ensures durability, and additional accessories included facilitate assembly. The maximum operating temperature is 110°C, making Mexen C11 suitable for various conditions.

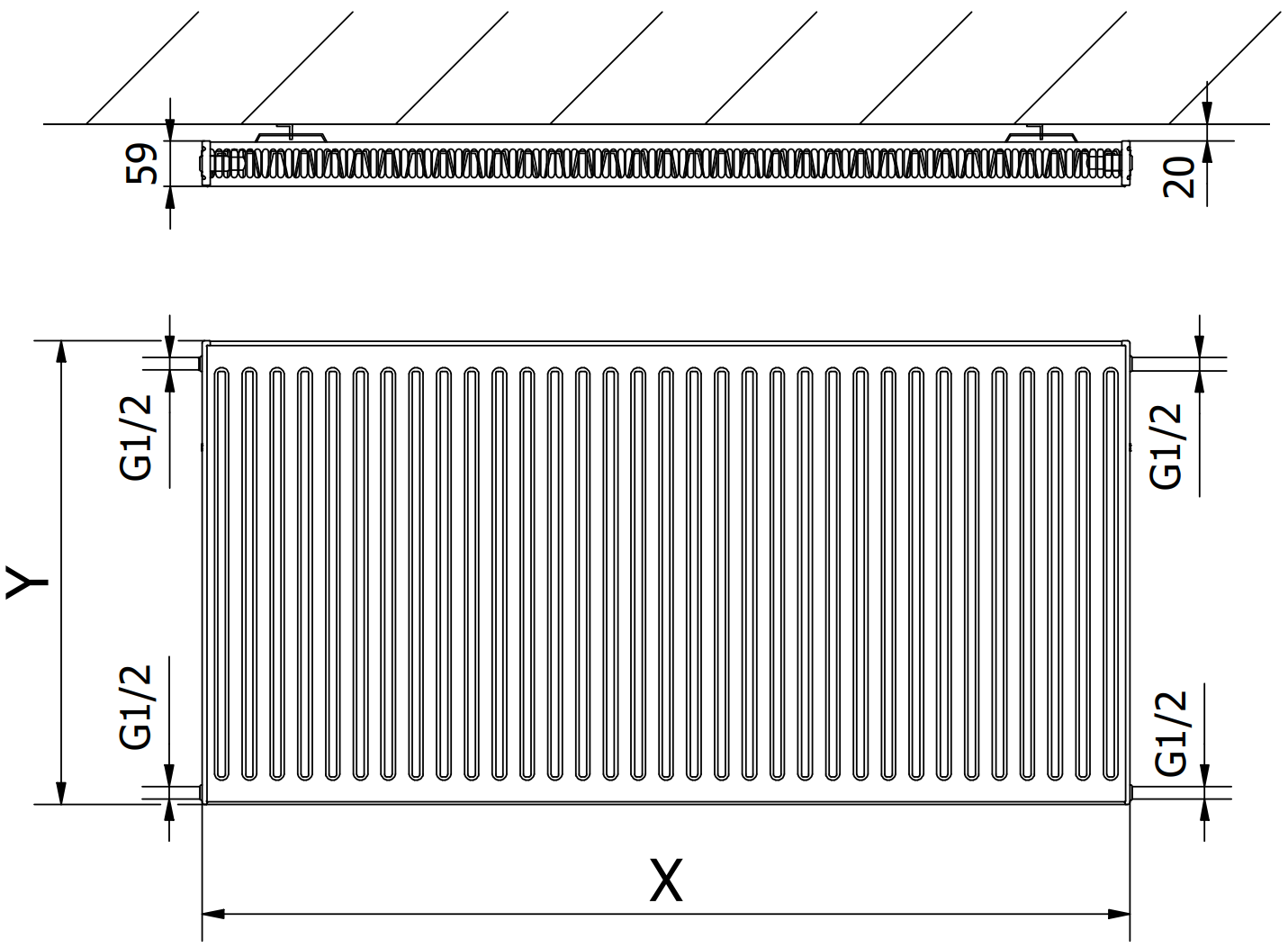

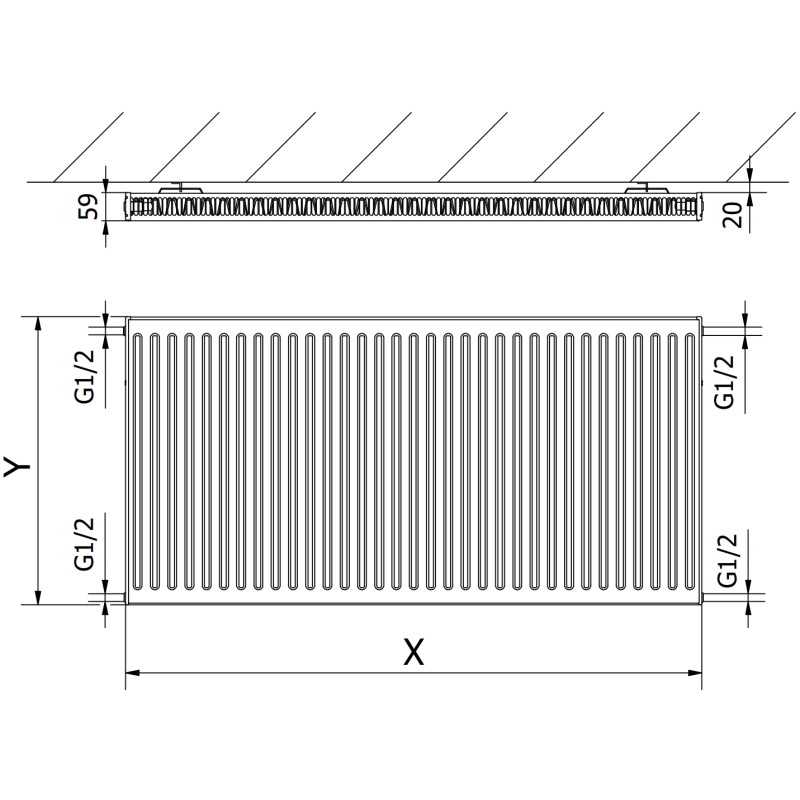

Technical data:

Height (Y): 600 mm

Width (X): 800 mm

Depth: 59 mm

Connection spacing: 55 cm

Vertical water channels spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Weight: 13.56 kg

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 391 W

- 75/65/20 °C 747 W

- 90/70/20 °C 940 W

Connections:

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

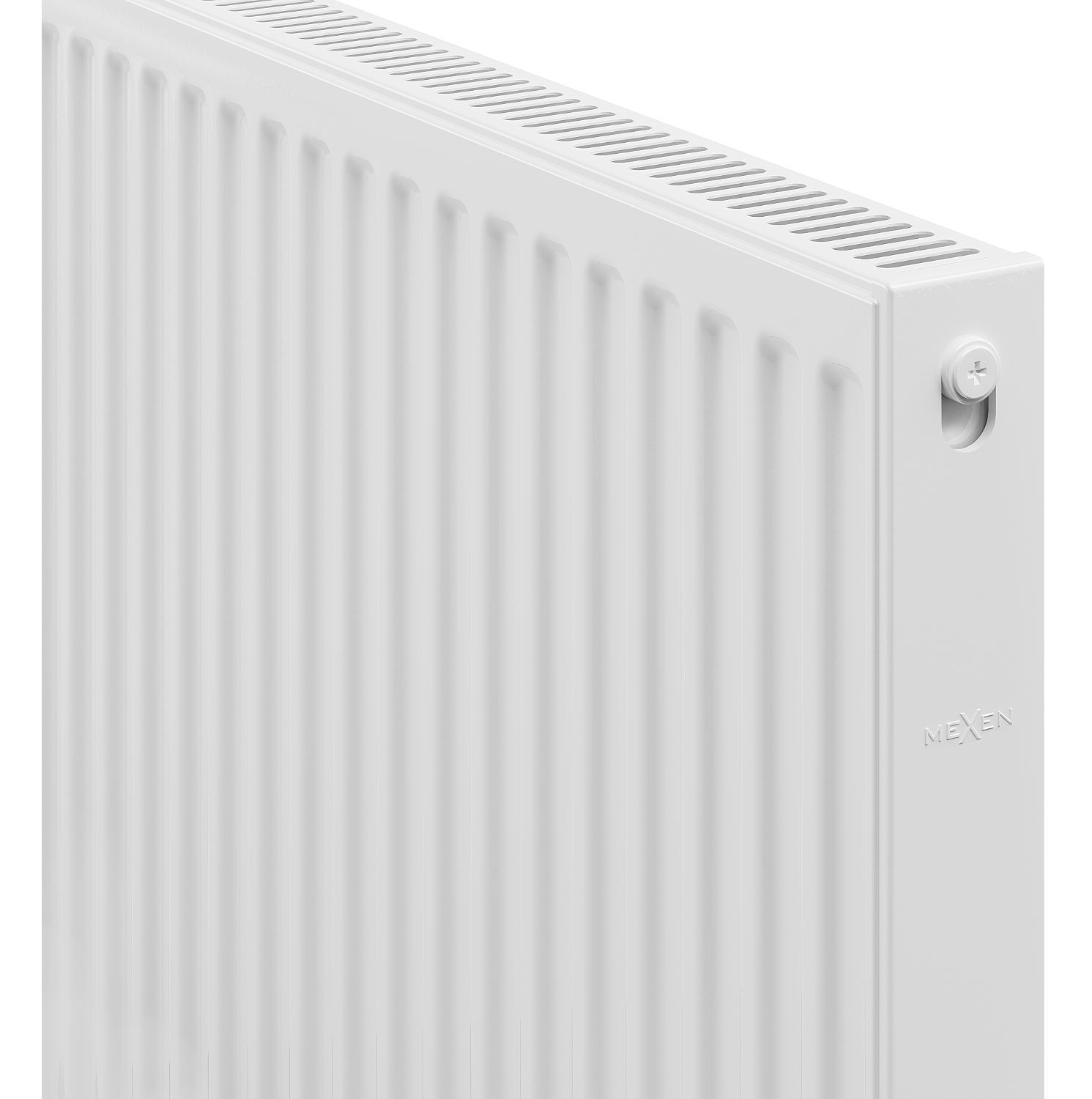

Comes with a side cover and removable top cover

Included: hangers, assembly kit, sealing plugs, and a vent

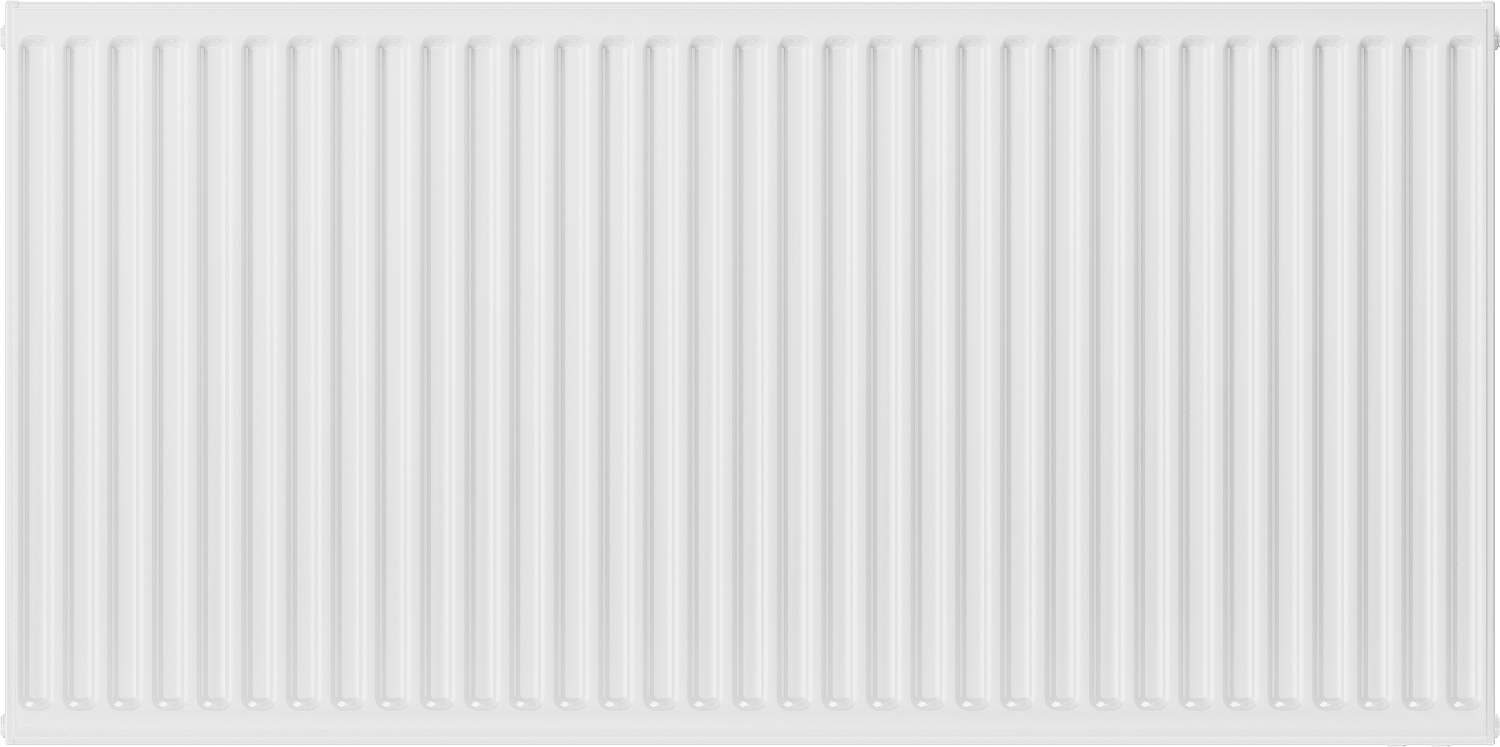

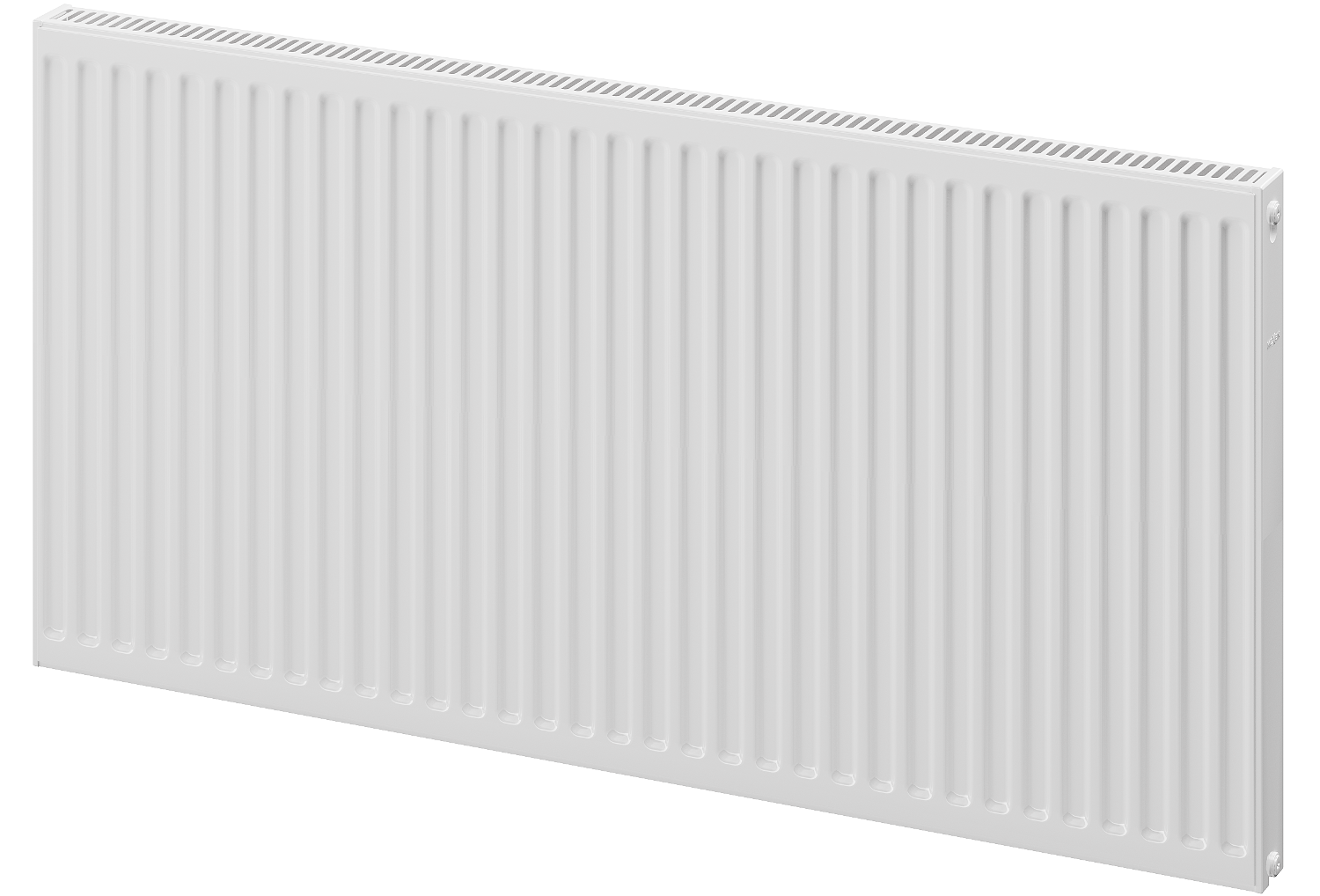

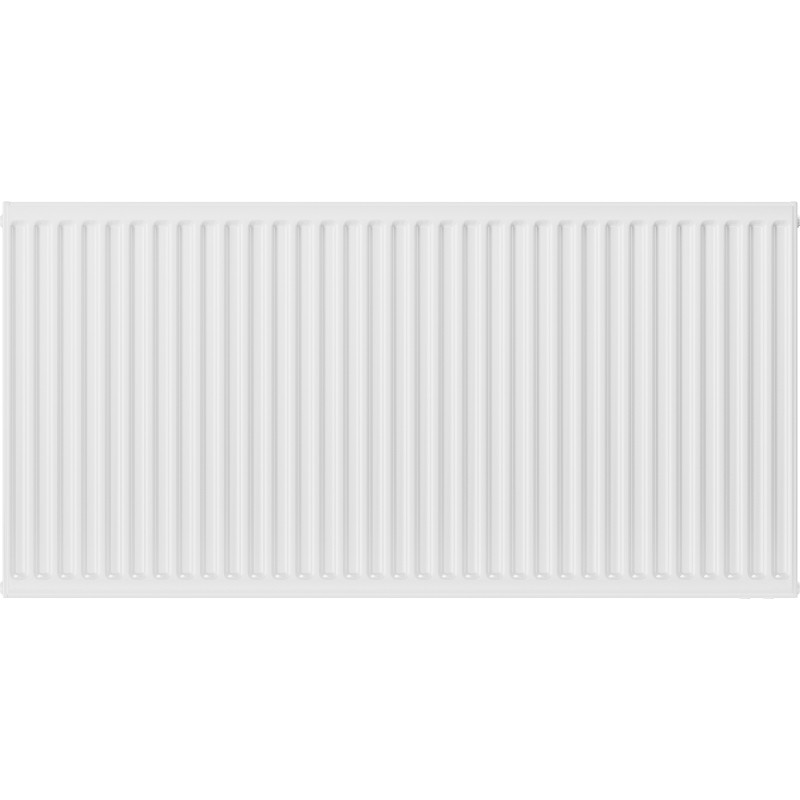

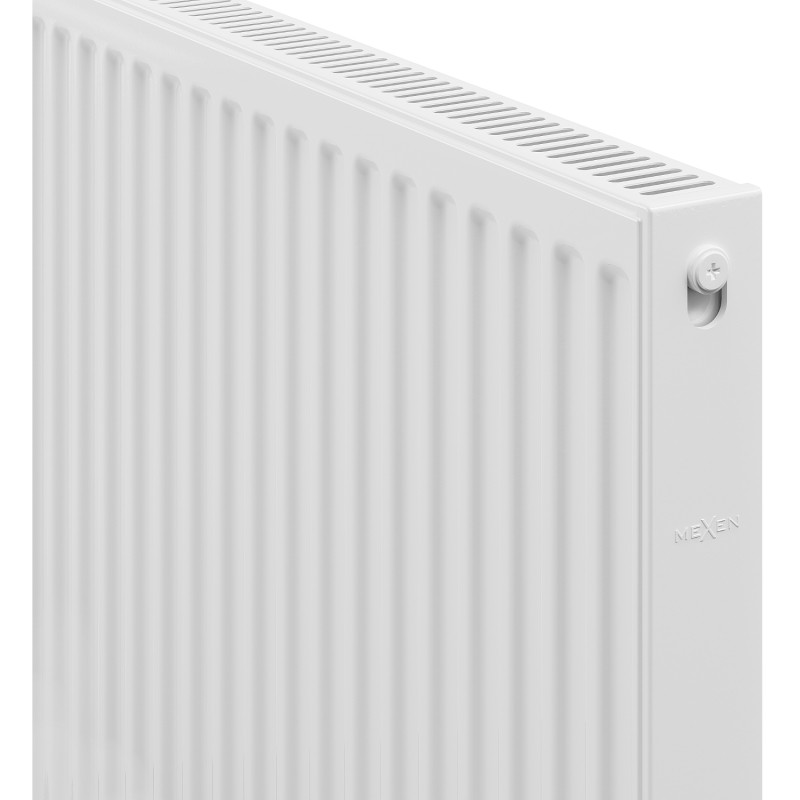

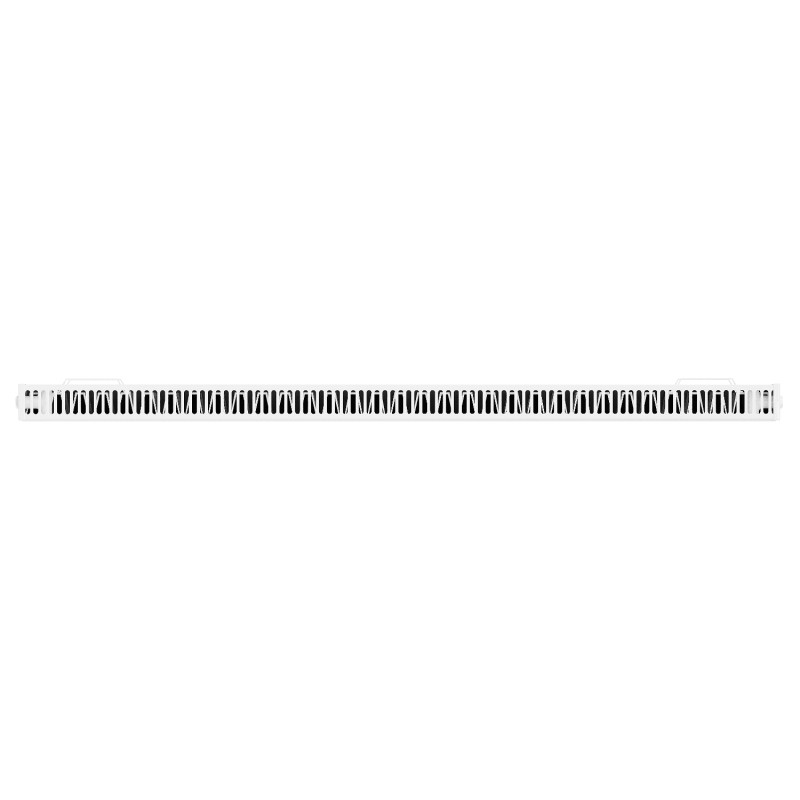

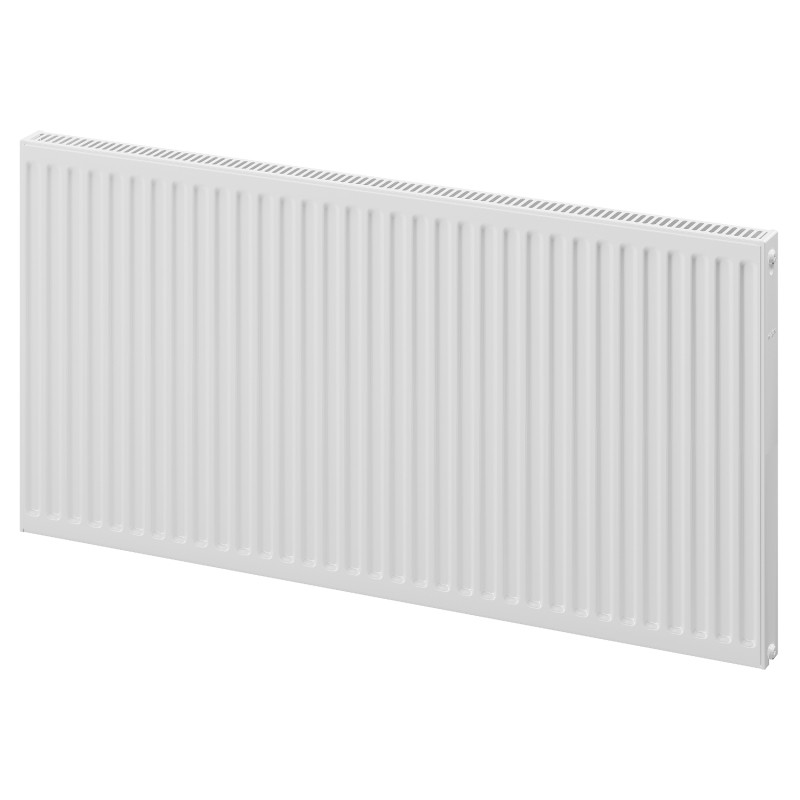

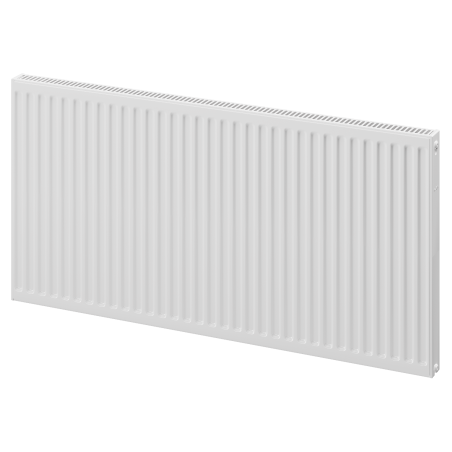

Pictures show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 MPa

The maximum working pressure is 1 MPa (10 bar). This means that the radiator can operate safely and efficiently under standard operating conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. This allows for effective and efficient heating of the room while ensuring the safety of users and the surfaces surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - it indicates that it does not negatively affect human health or the natural environment in any way. nr B.BK.60112.0464.2022 valid until 13.02.2028

Series
C11
Width
800 mm
Height
600 mm
Depth
59 mm
Type
Plate / Panel
Heating power
560 W
Color
White
Material
Steel
Type
11
Mounting side
Universal
Connection spacing
55 cm
Connection
Side
Orientation
Horizontal
