Mexen Line CVL22 is a modern panel radiator measuring 900 x 600 mm, ensuring high heating efficiency, reaching 1320 W at parameters 75/65/20 °C. Thanks to the bottom connection and the possibility of side connection, it provides installation flexibility. Made of steel, covered with a durable white coating RAL 9016 according to DIN 99500 standard, the radiator is characterized by durability and elegance. The set includes hangers, installation set, plugs, air vent, and valve insert.

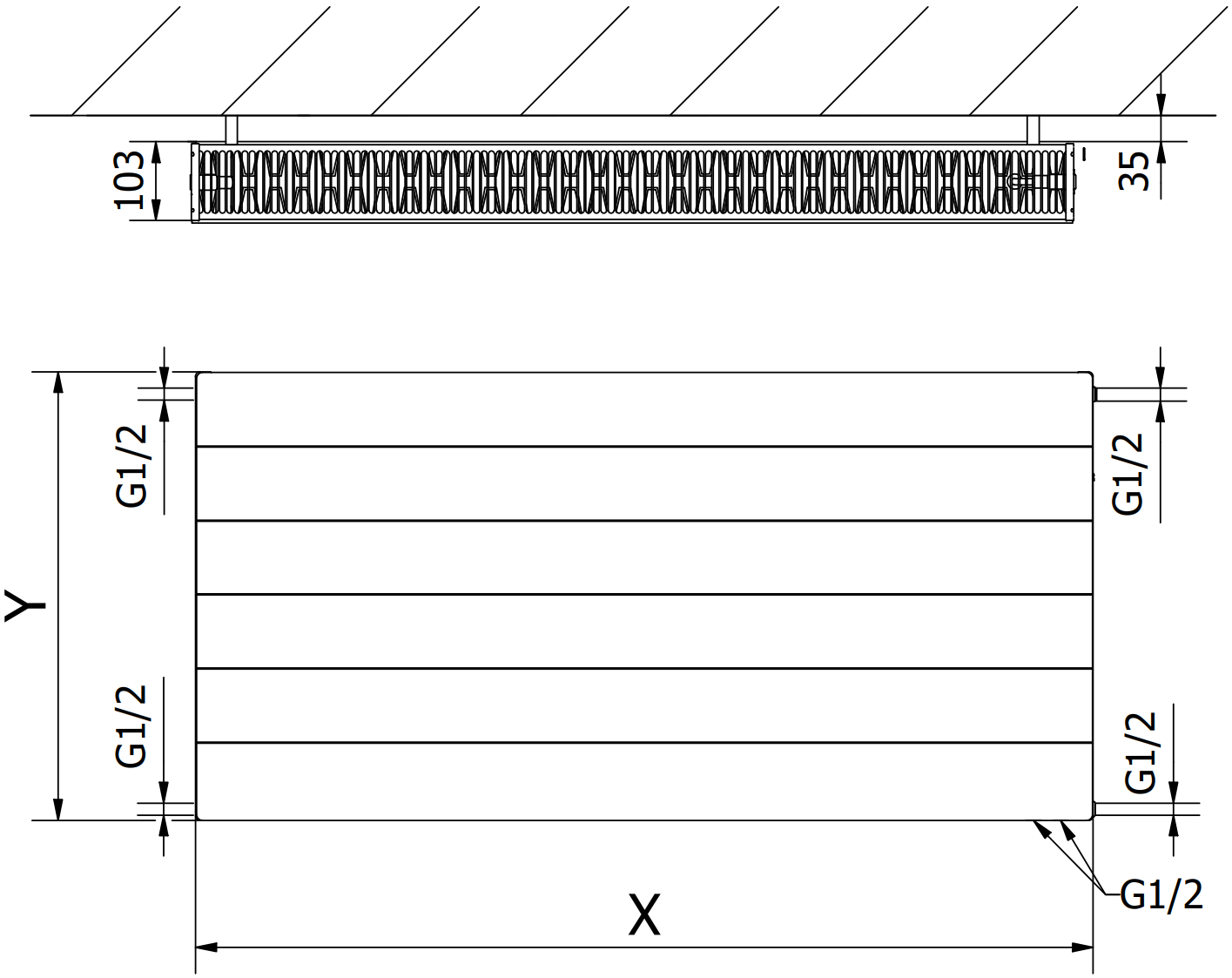

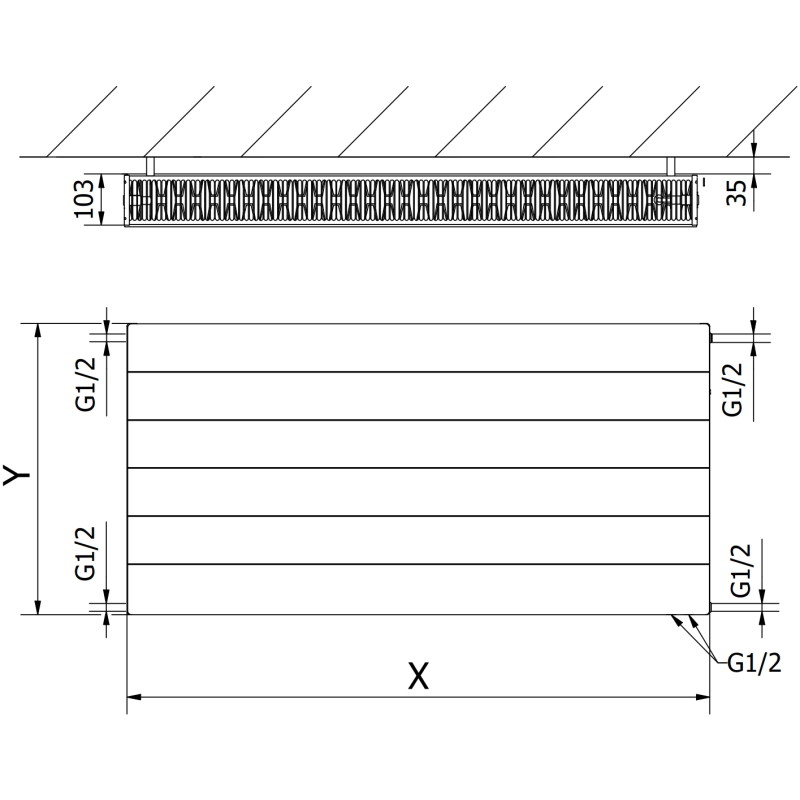

Technical data:

Height (Y): 900 mm

Width (X): 600 mm

Depth: 103 mm

Connection distance: 5 cm

Distance between vertical water channels: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Max working pressure: 10 bar

Max test pressure: 13 bar

Heating power:

- 55/45/20 °C 681 W

- 75/65/20 °C 1320 W

- 90/70/20 °C 1671 W

Connections:

- 2xG ½″ bottom right or left

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Includes side cover and removable top cover

Set includes: hangers, installation set, sealing plugs, air vent, and valve insert

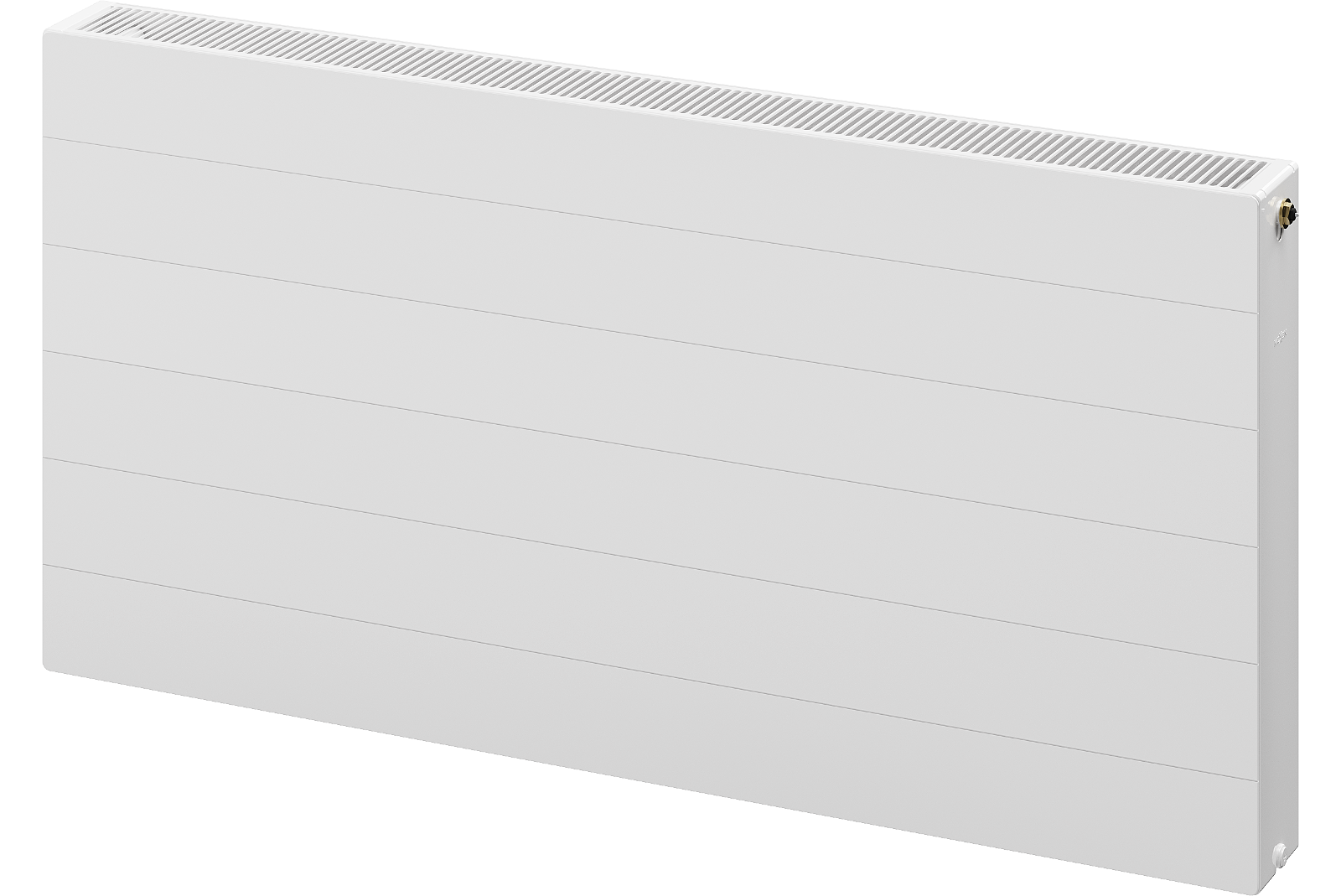

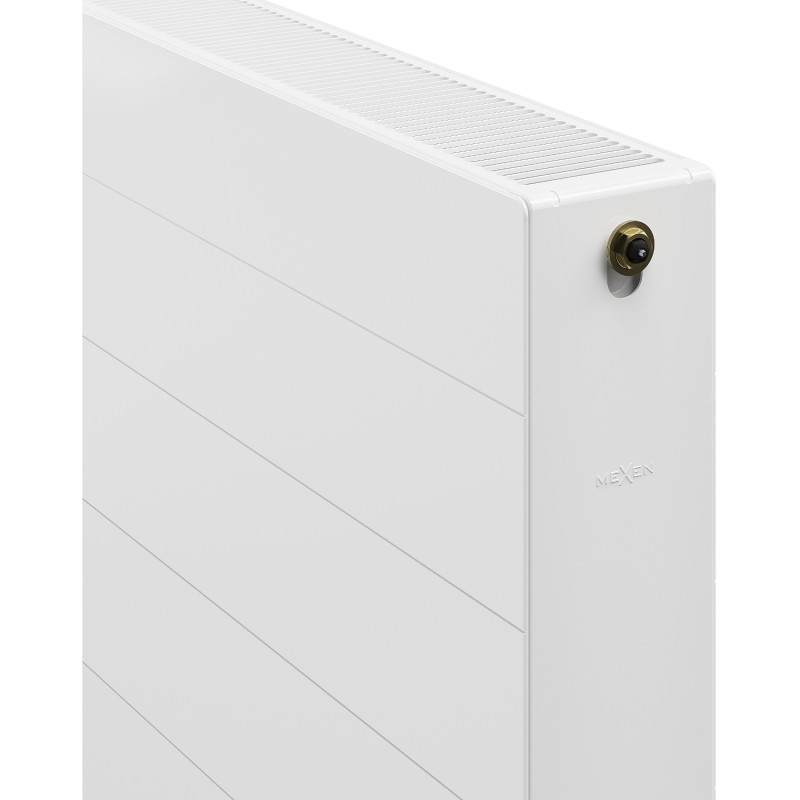

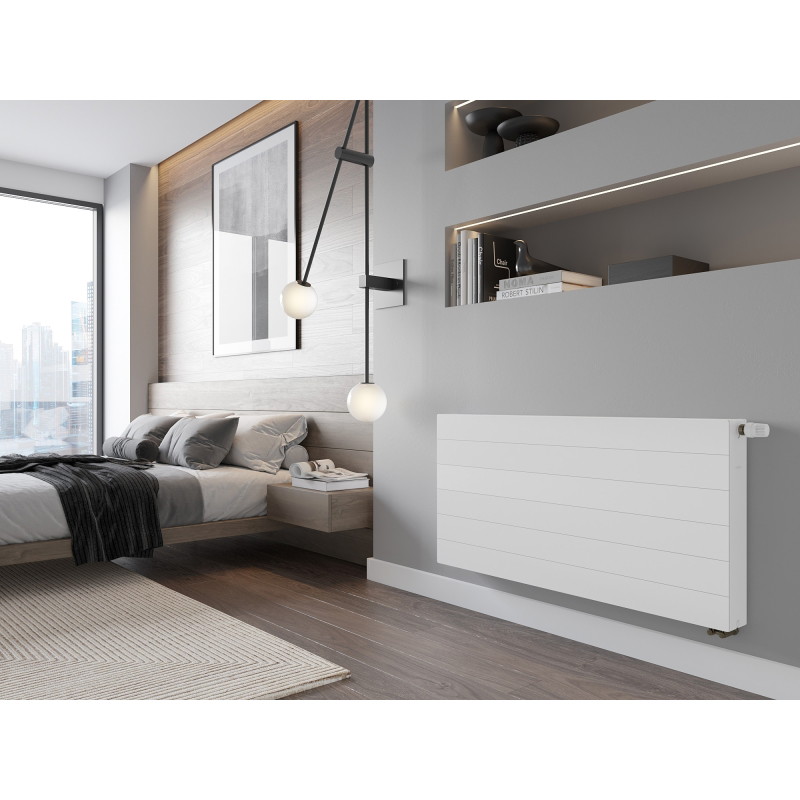

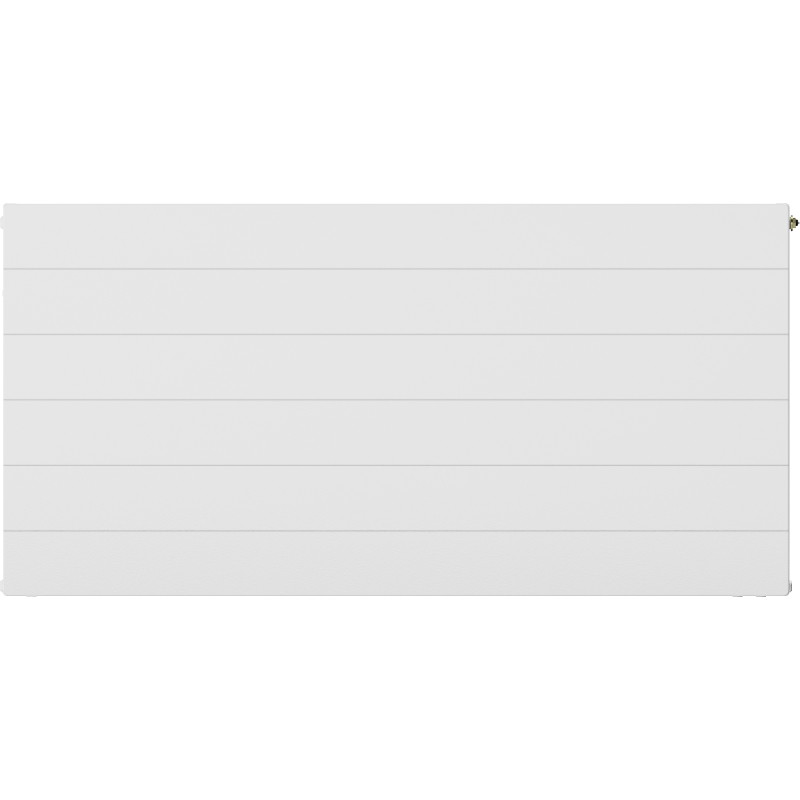

Photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 MPa

The maximum working pressure is 1 MPa (10 bar). This means that the radiator can operate safely and efficiently under standard operating conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. This allows for effective and efficient heating of the room while ensuring the safety of users and the surfaces surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVL22
Width
600 mm
Height
900 mm
Depth
103 mm
Type
Plate / Panel
Heating power
1320 W
Color
White
Material
Steel
Type
22
Mounting side
Universal
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
