Mexen CV11 plate radiator 300 x 600 mm, bottom connection, 293 W, anthracite - W611-030-060-66
The Mexen CV11 is the ideal plate radiator for those who value modern solutions. Its compact dimensions, 300 x 600 mm, and elegant anthracite color perfectly fit into modern interiors. With a heating power of up to 293 W and the ability to operate at high temperatures (up to 110 °C), it provides cozy warmth on cold days. Made of steel, it is characterized by durability and resistance. It includes all necessary installation accessories, ensuring easy installation. The Mexen CV11 combines aesthetics and functionality.

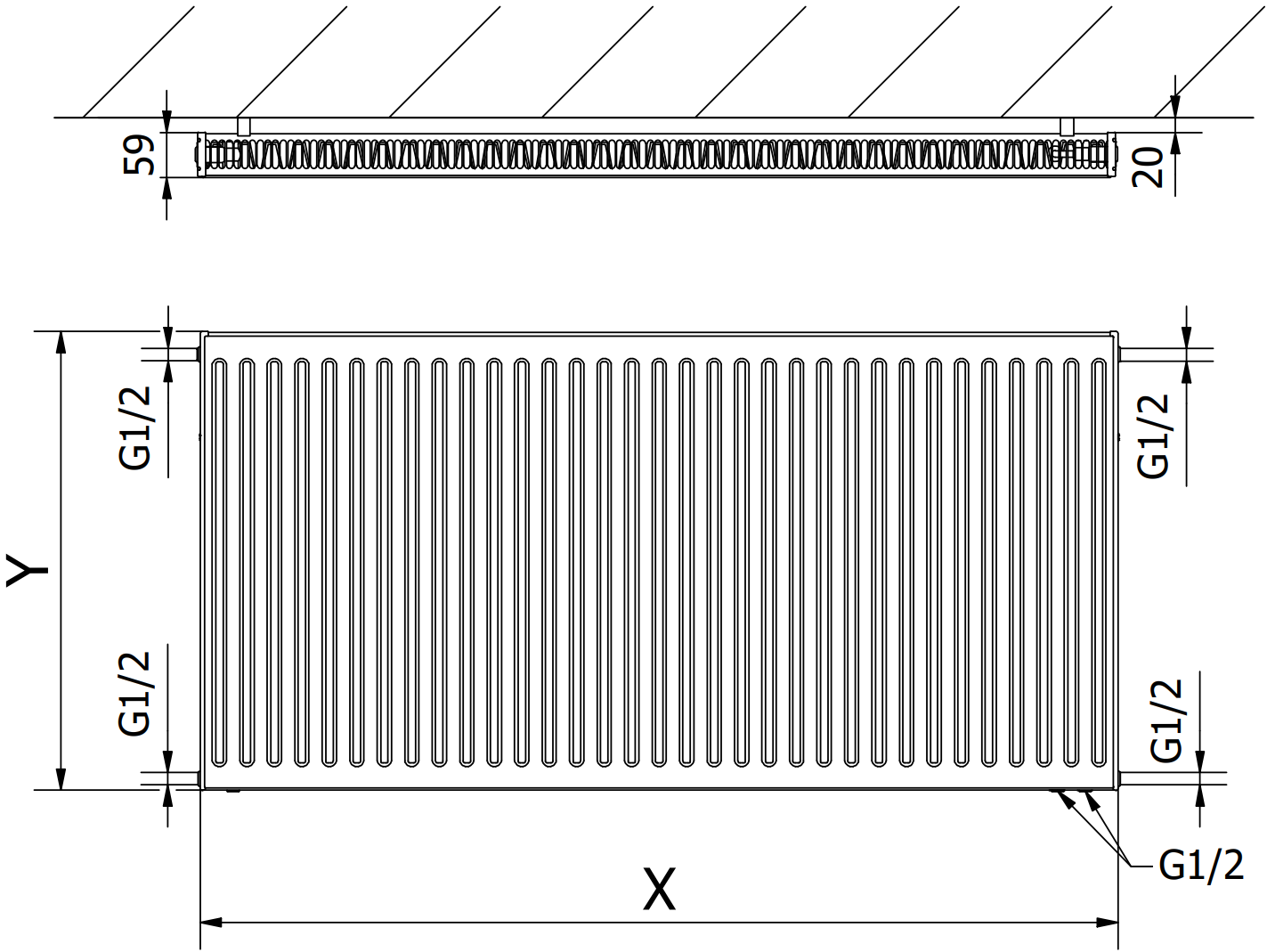

Technical data:

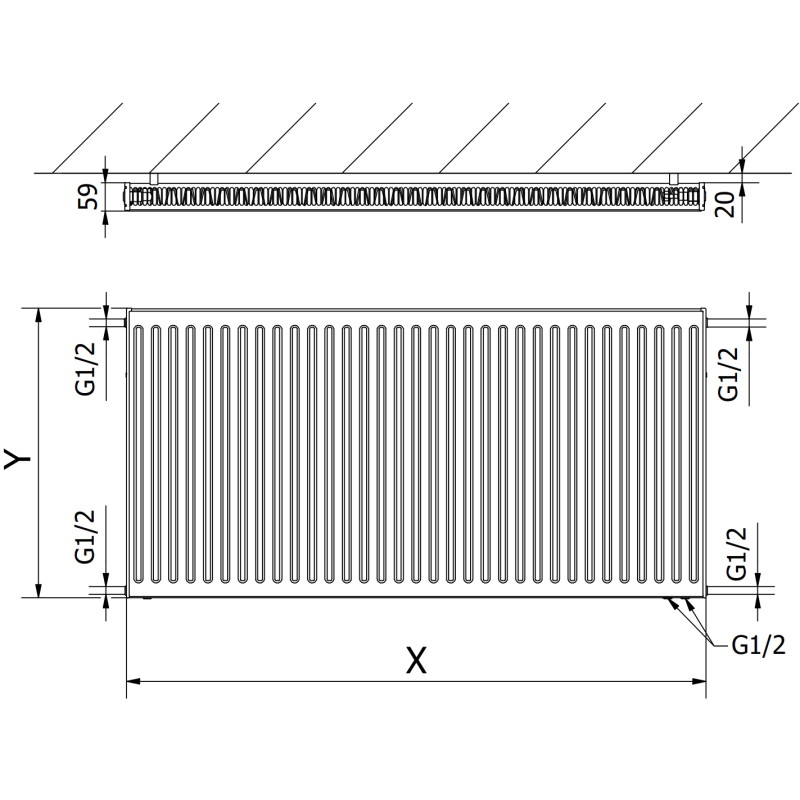

Height (Y): 300 mm
Width (X): 600 mm
Depth: 59 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Color: Anthracite RAL 7016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 153 W
- 75/65/20 °C 293 W
- 90/70/20 °C 370 W
Connections:
- 2xG ½″ from below right
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Includes: hangers, installation kit, end caps, air vent and valve insert

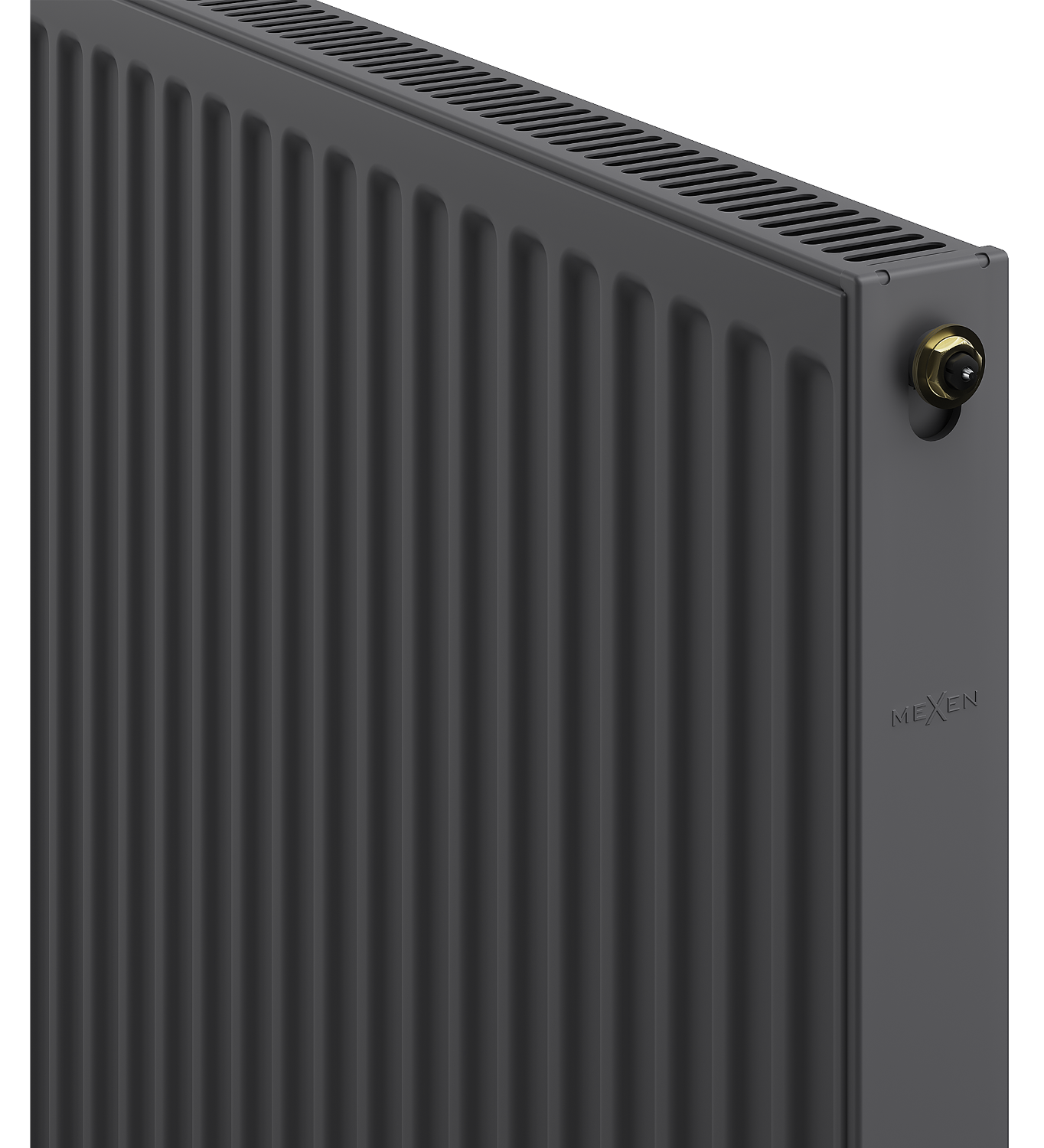

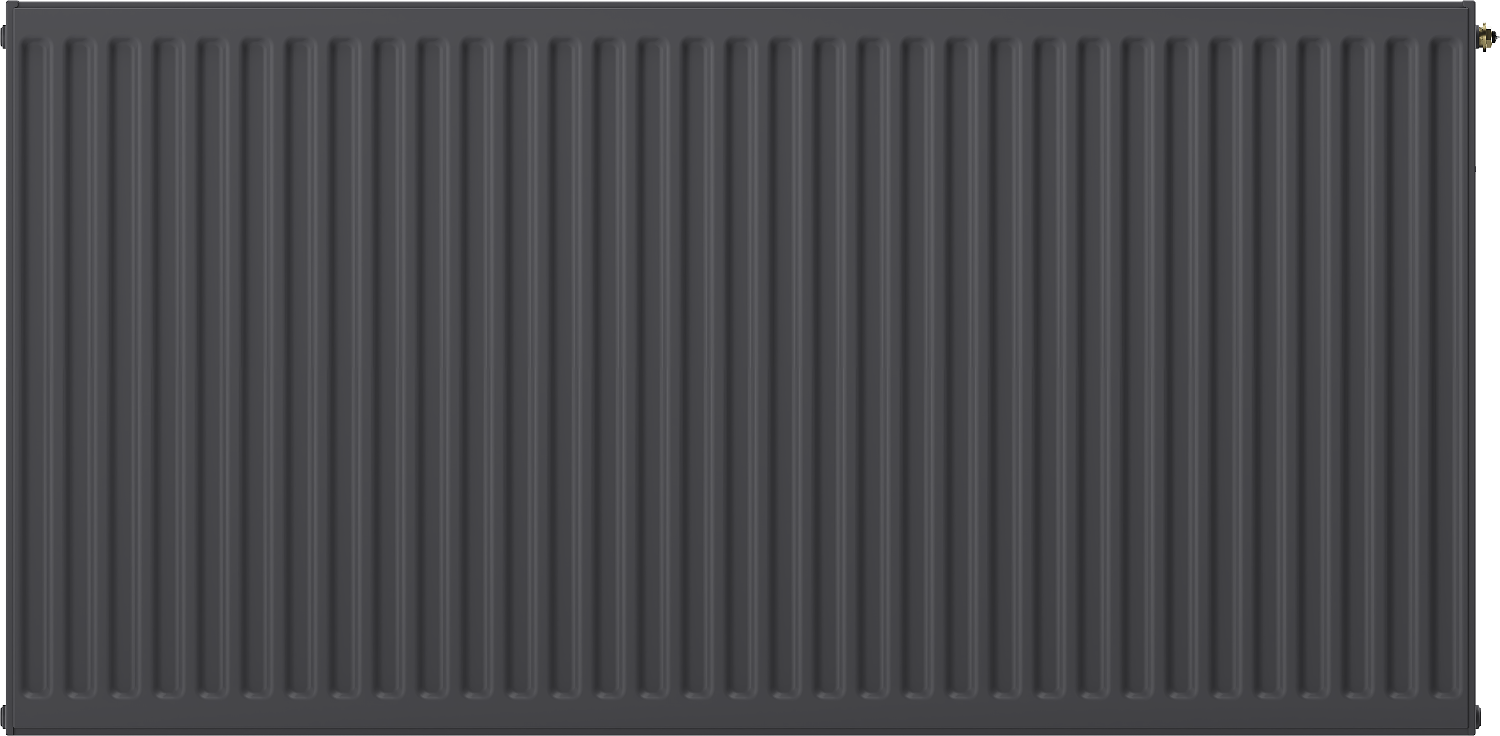

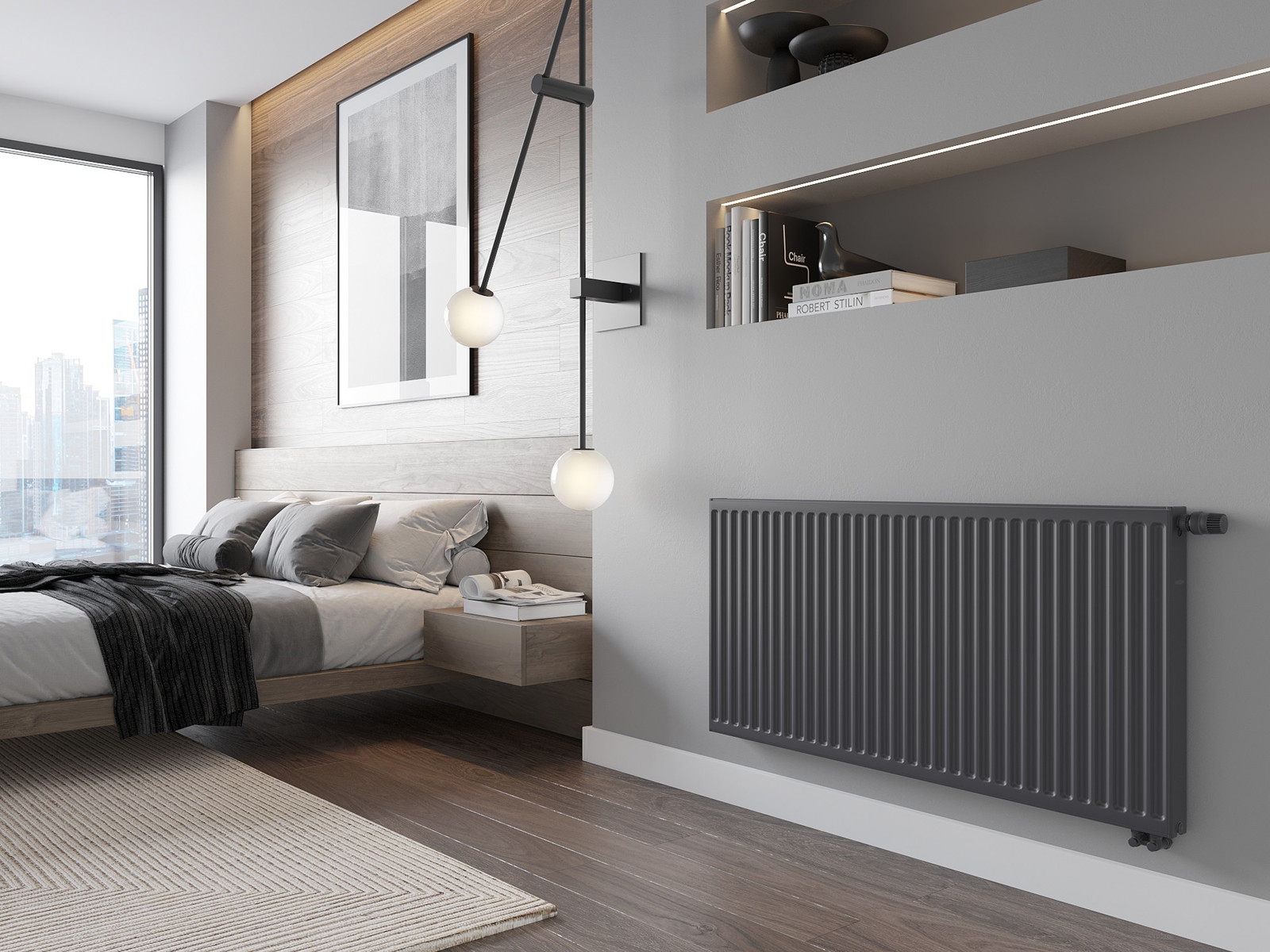

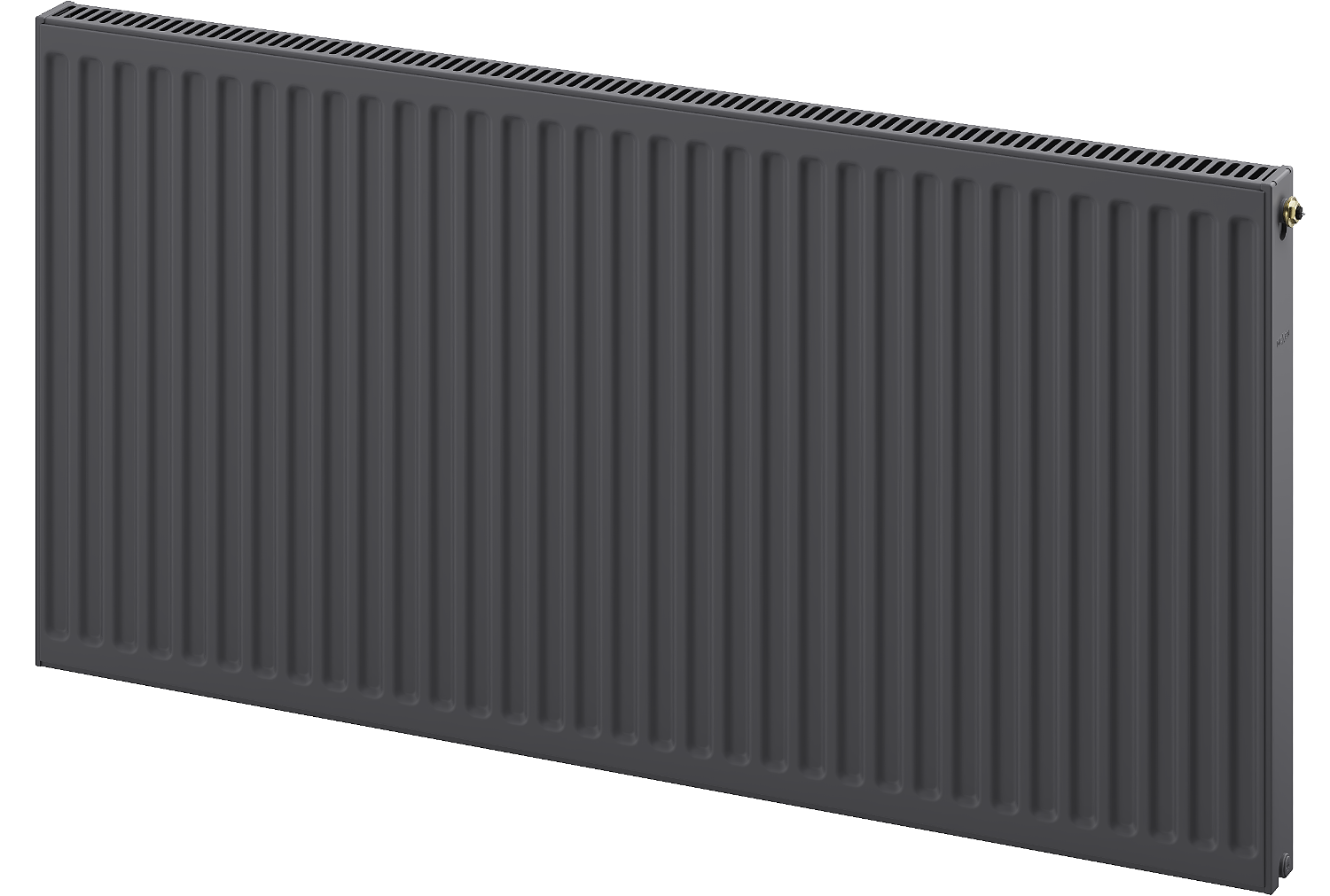

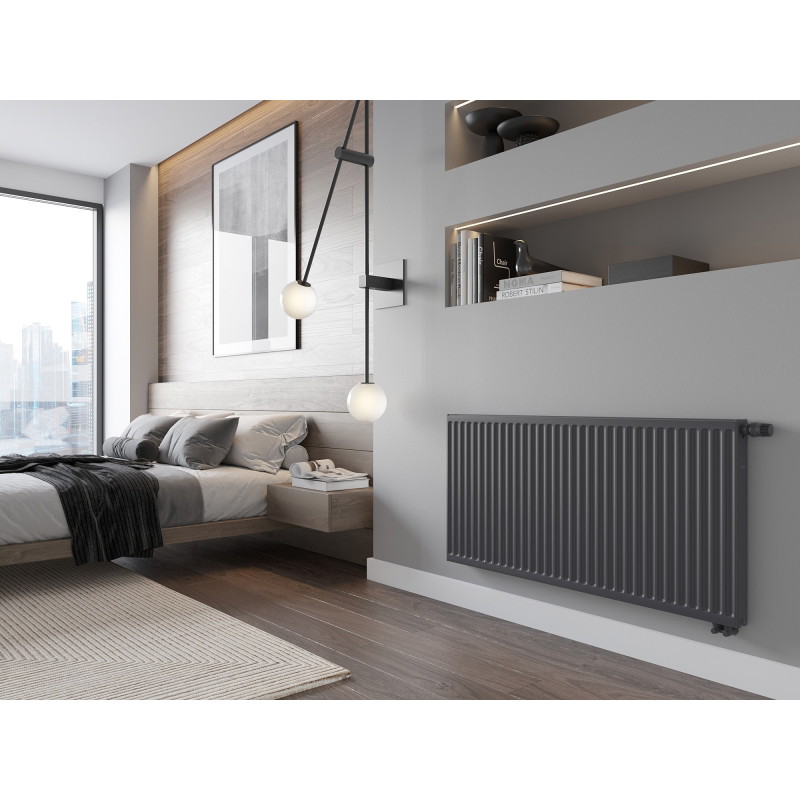

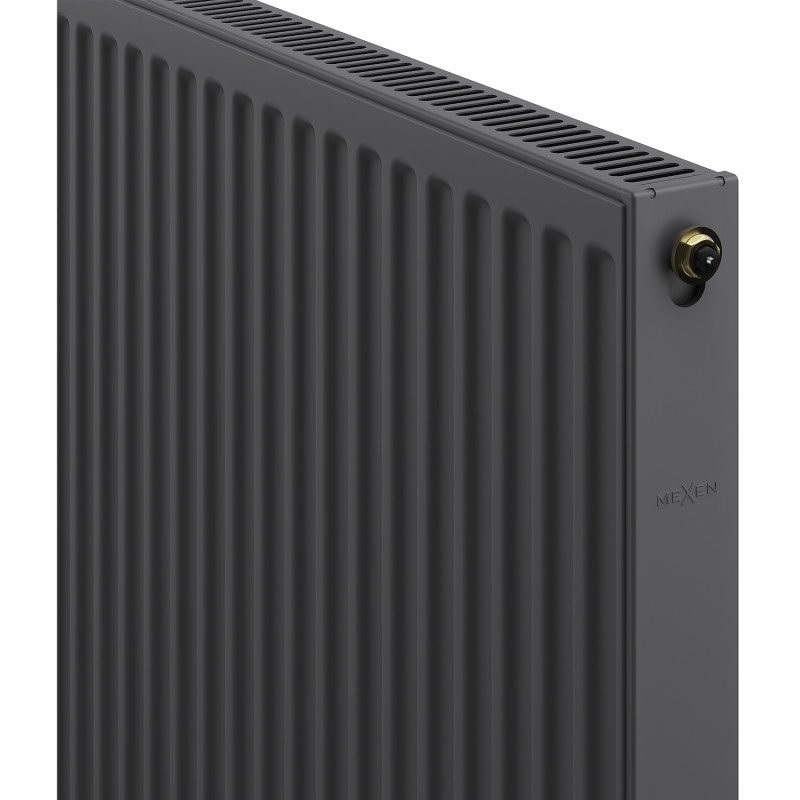

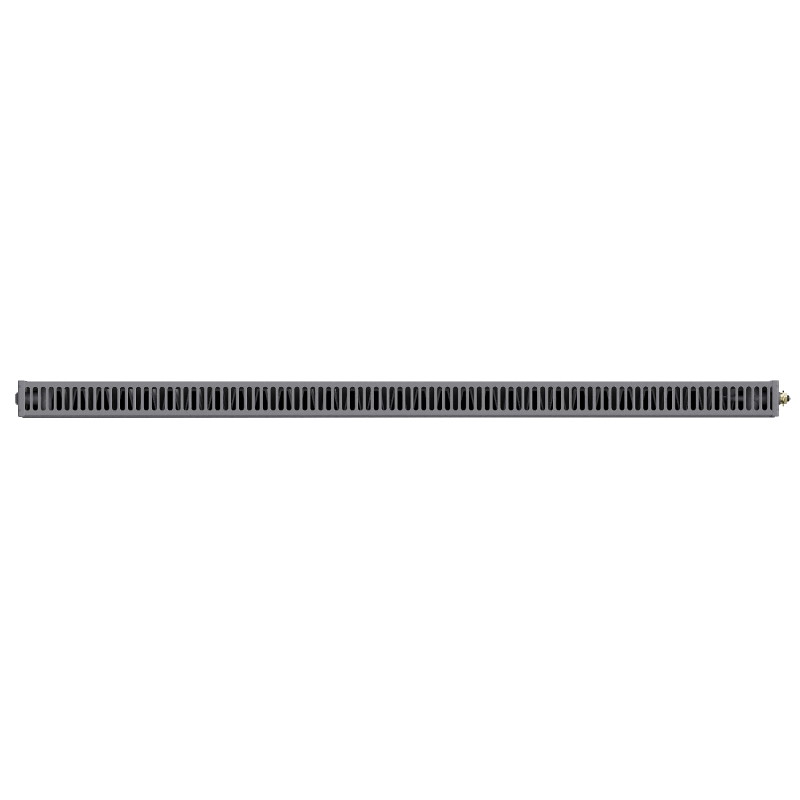

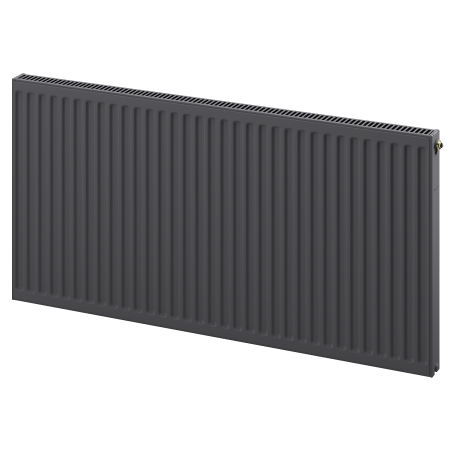

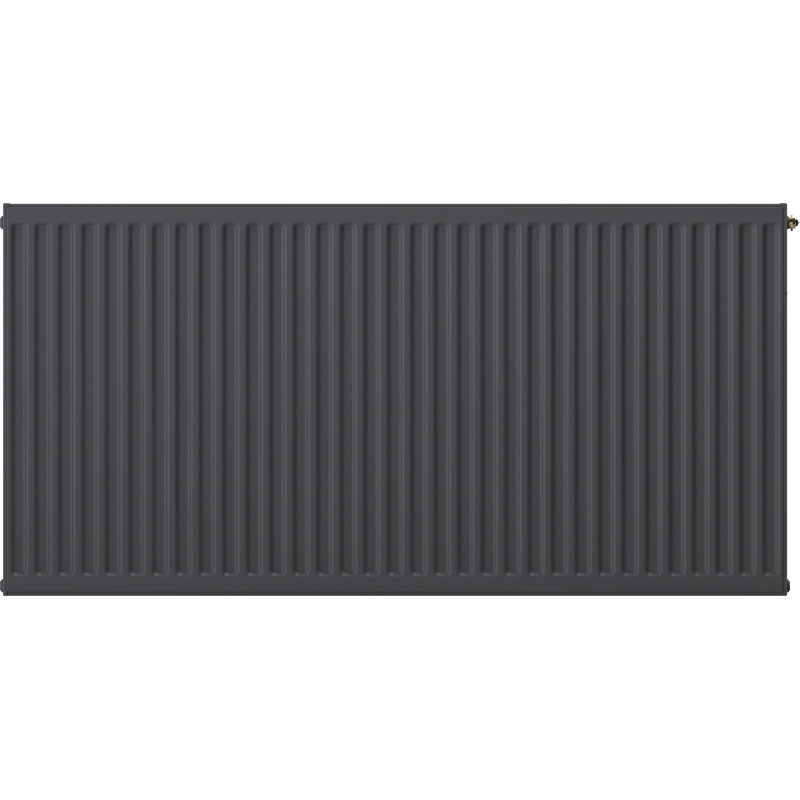

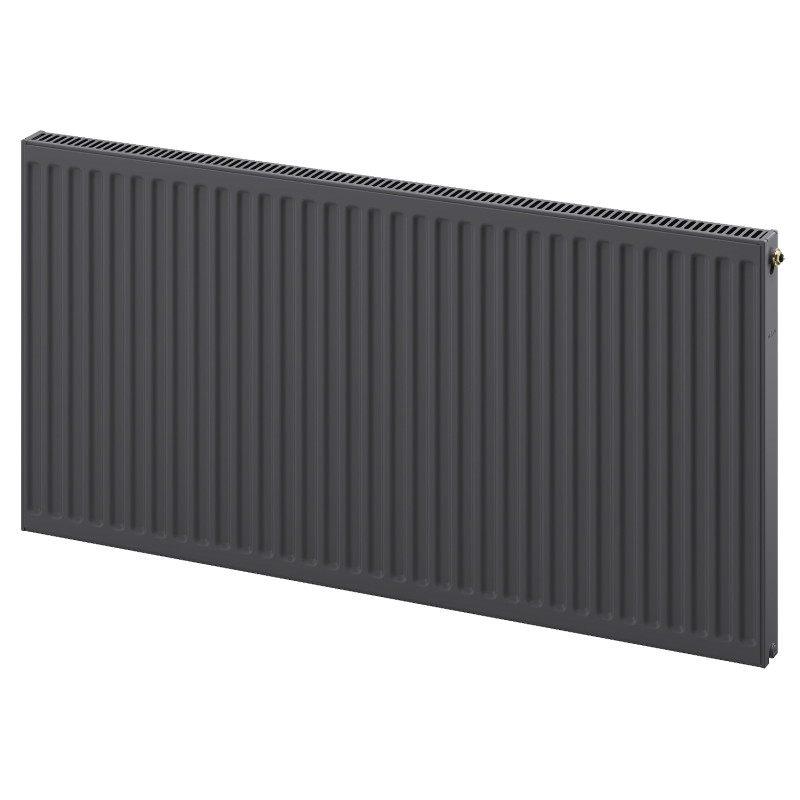

Photos show the radiator in size 600 x 1200 mm.
