Mexen CV11 plate radiator 400 x 2600 mm, bottom connection, 1685 W, anthracite - W611-040-260-66
The Mexen CV11 panel radiator is an excellent solution for any interior. With dimensions of 400 x 2600 mm and a bottom connection with 1685 W, it provides effective heating. Made of steel in an attractive anthracite RAL 7016 color, it is not only durable but also stylish. It offers heating power tailored to different operating temperatures, reaching up to 2125 W at 90/70/20 °C. The durable paint coating meets the DIN 99500 standard, and an additional advantage is the side covers and removable top cover. The complete set includes a full installation kit.
Technical data:

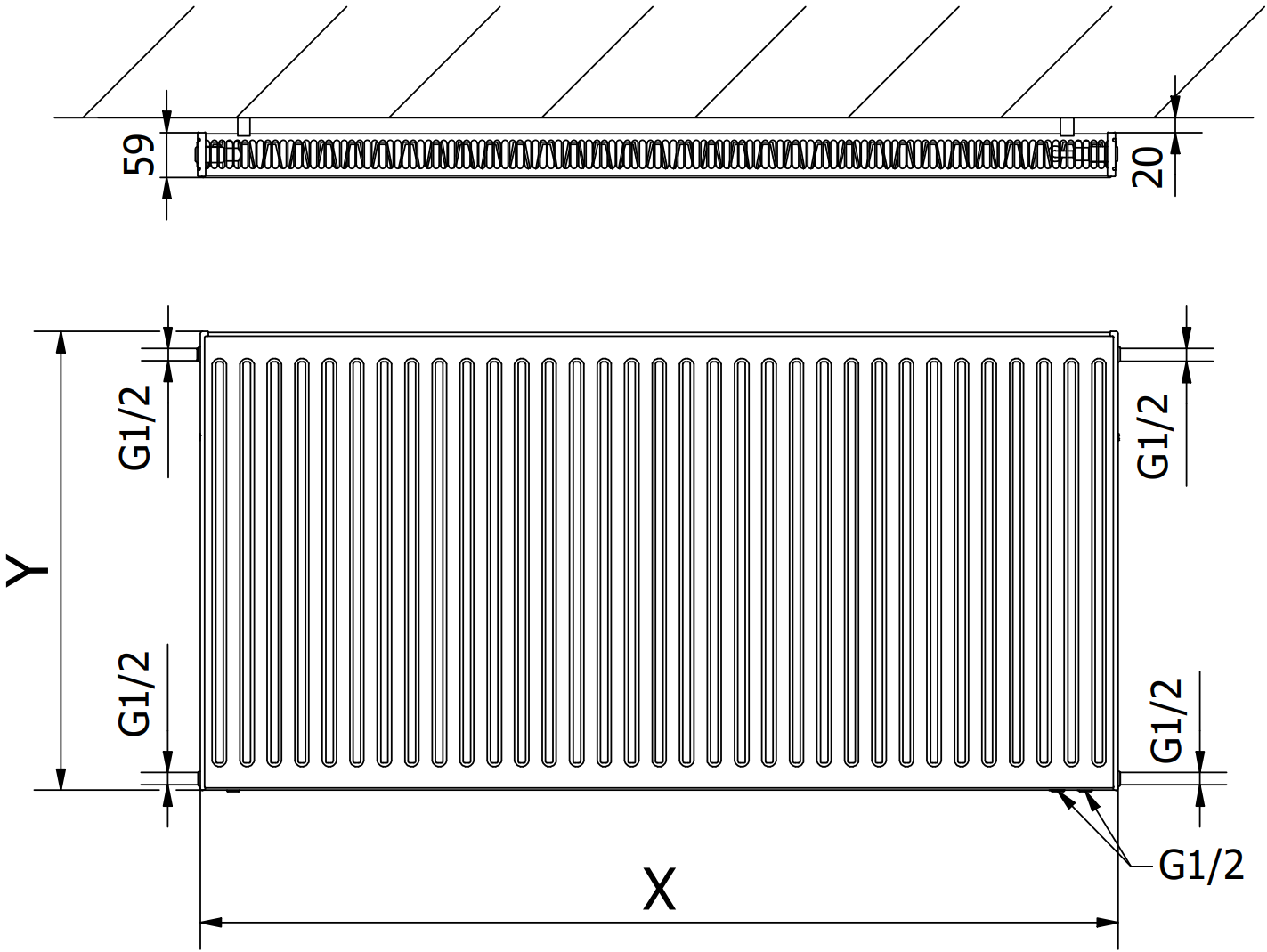

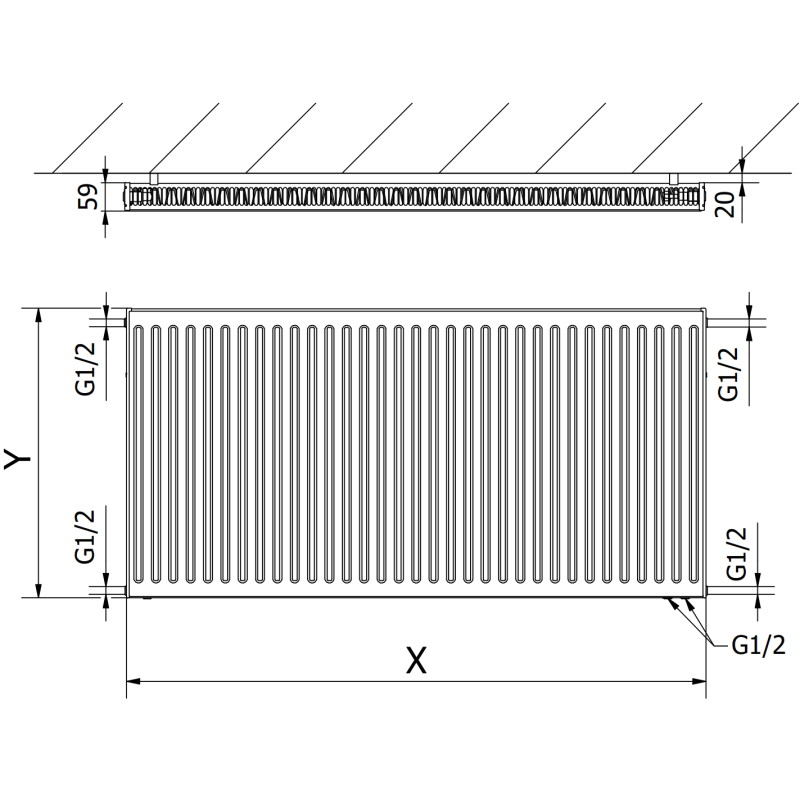

Height (Y): 400 mm
Width (X): 2600 mm
Depth: 59 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Color: Anthracite RAL 7016
Material: Steel
Working temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 880 W
- 75/65/20 °C 1685 W
- 90/70/20 °C 2125 W
Connections:
- 2xG ½″ from the bottom right
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Comes with side cover and removable top cover
Set includes: attachments, installation kit, sealing plugs, air vent, and valve insert

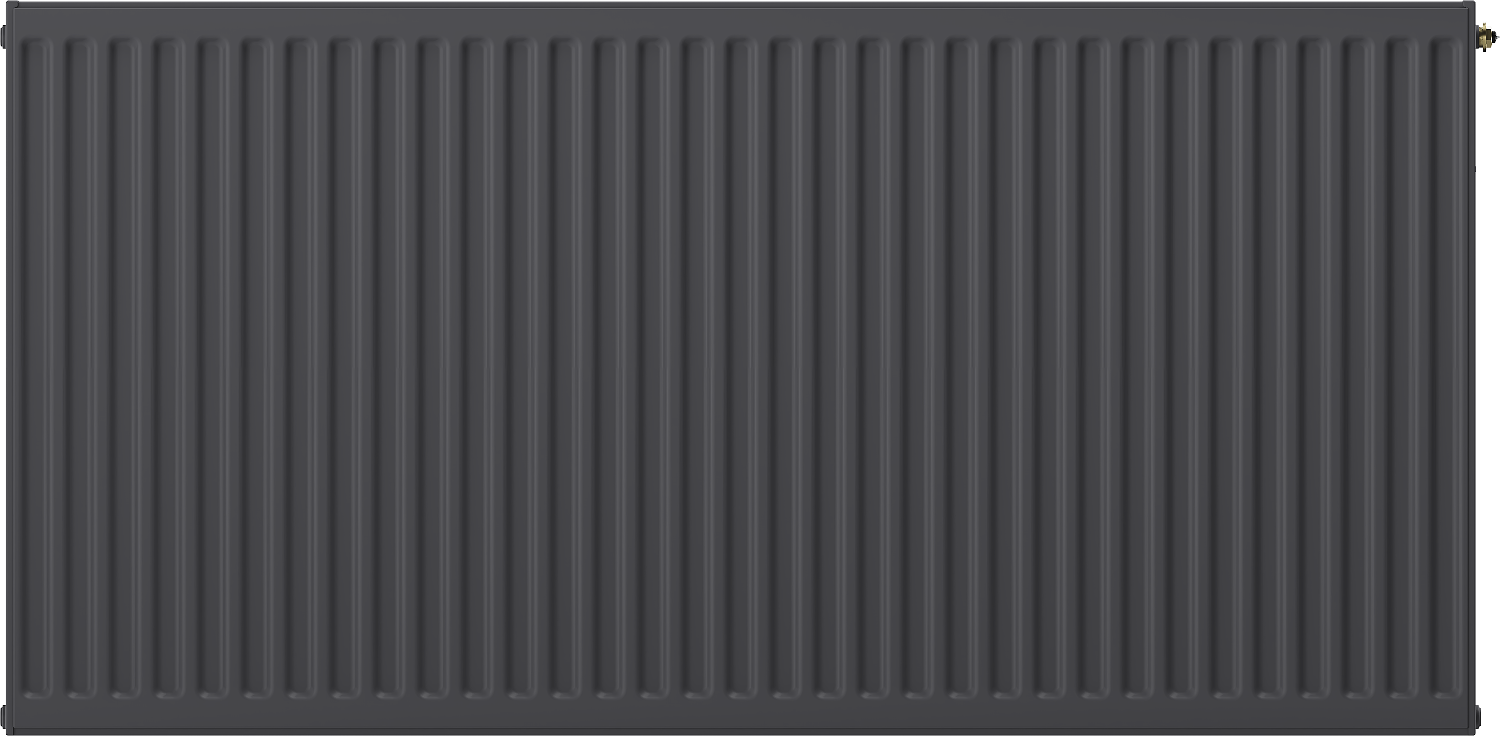

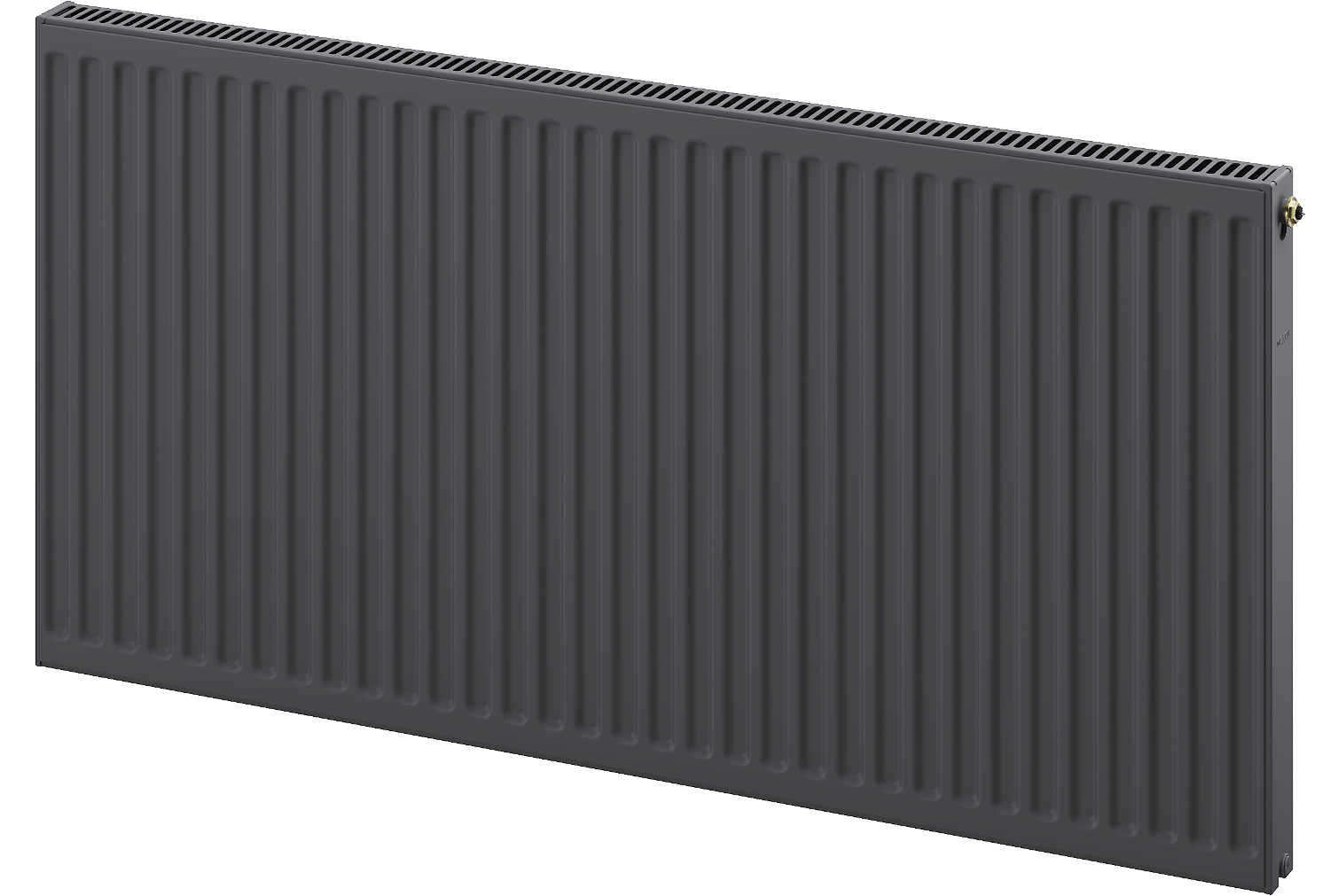

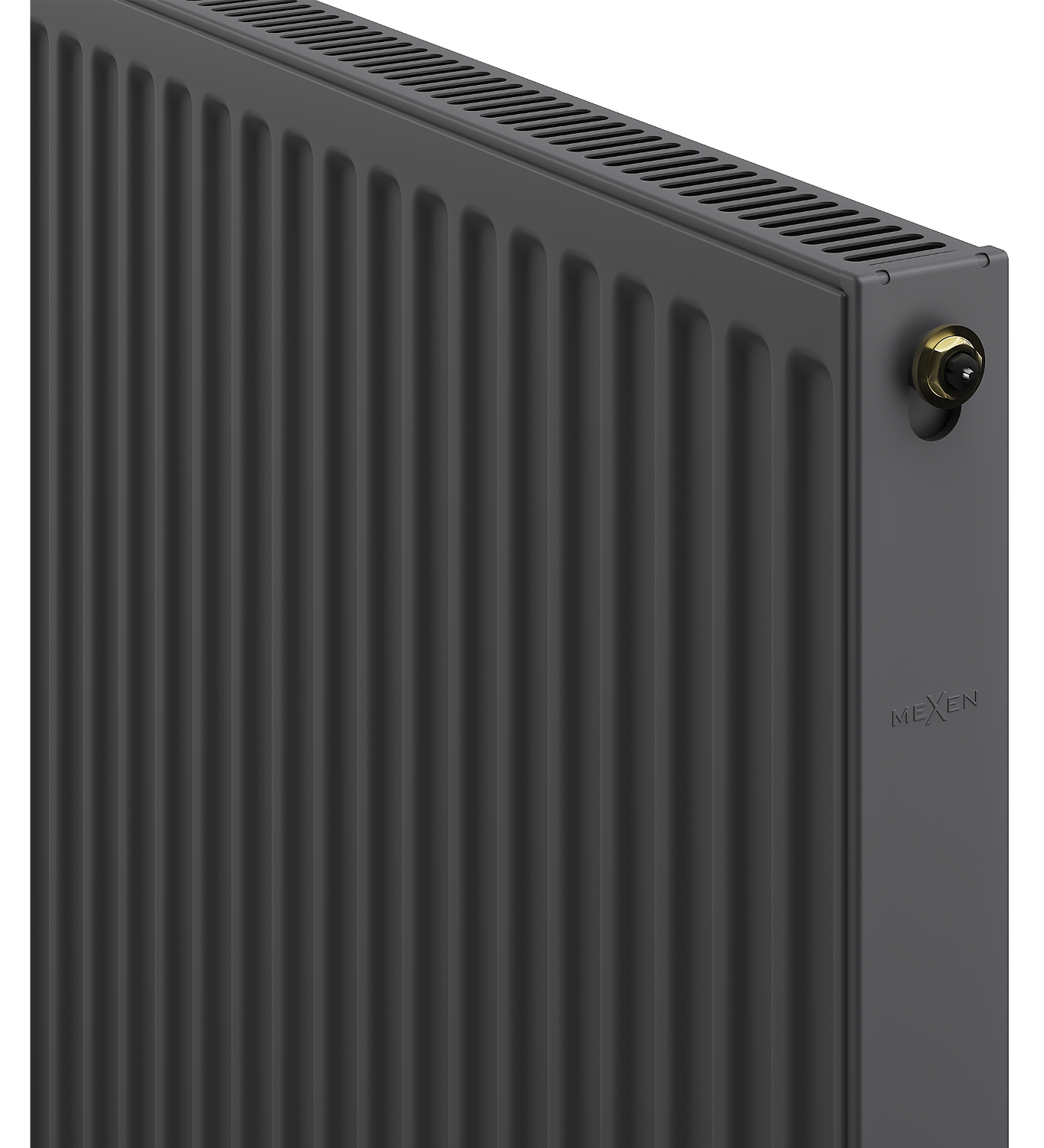

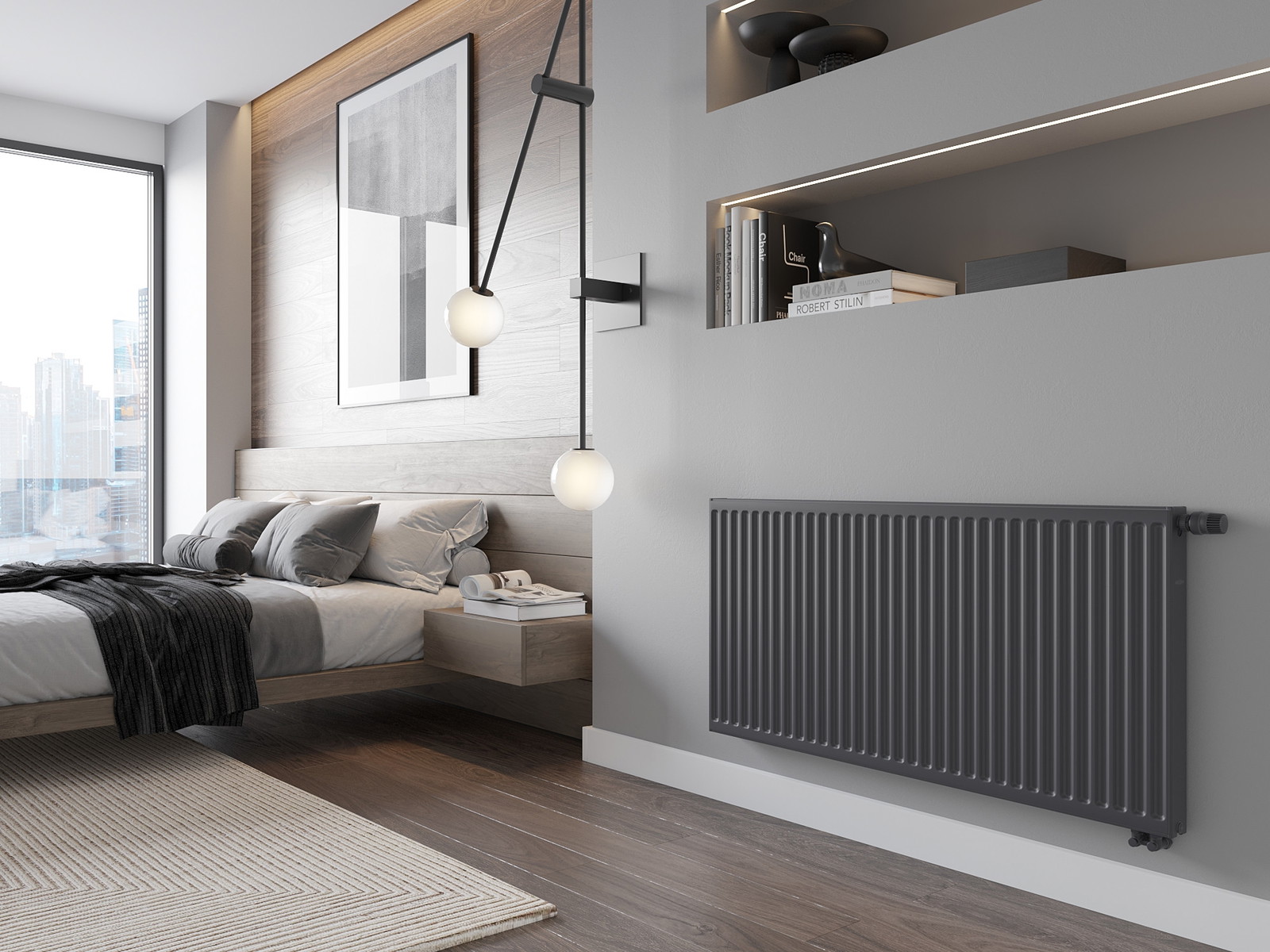

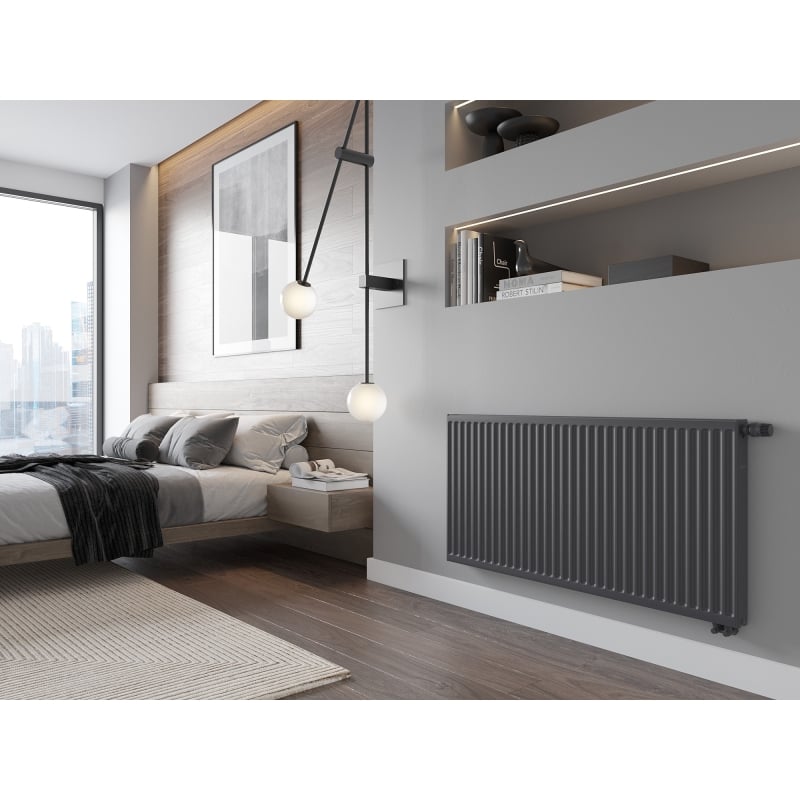

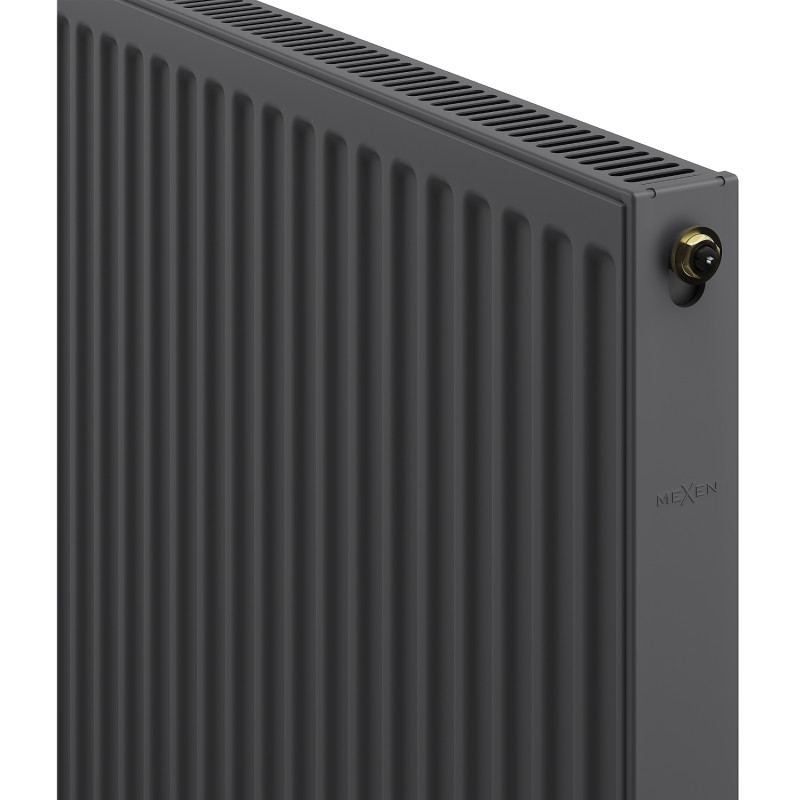

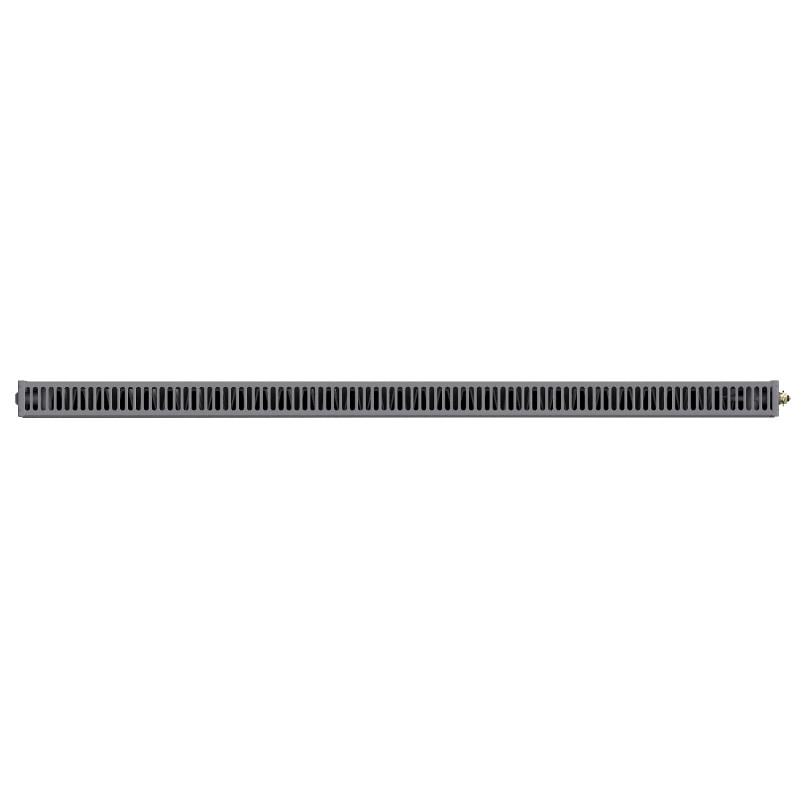

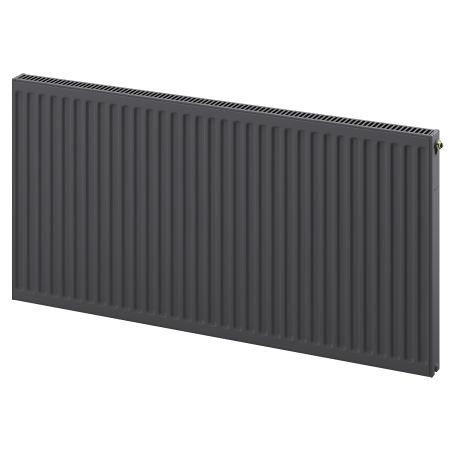

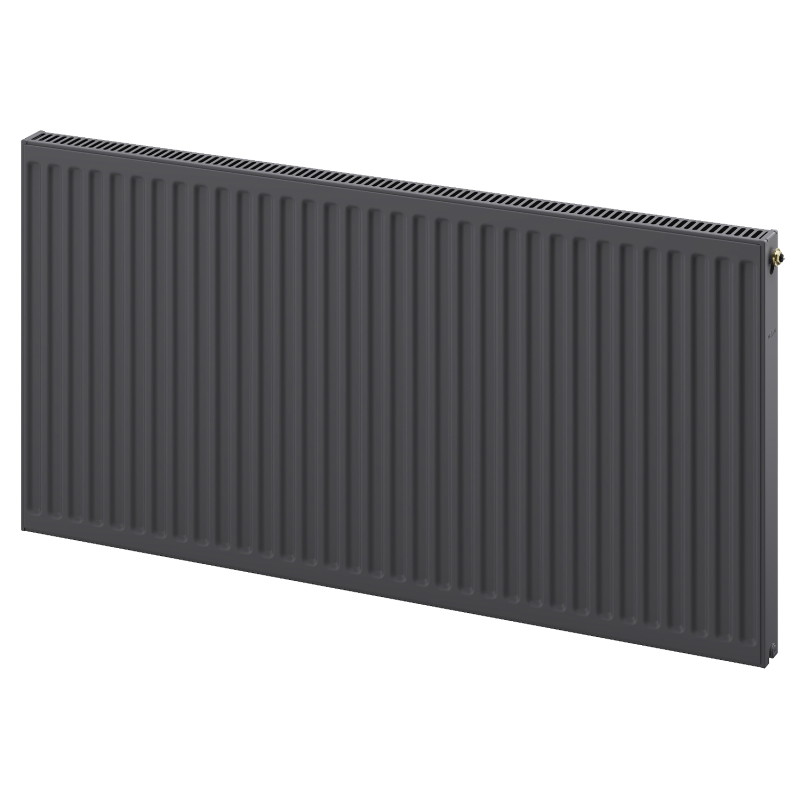

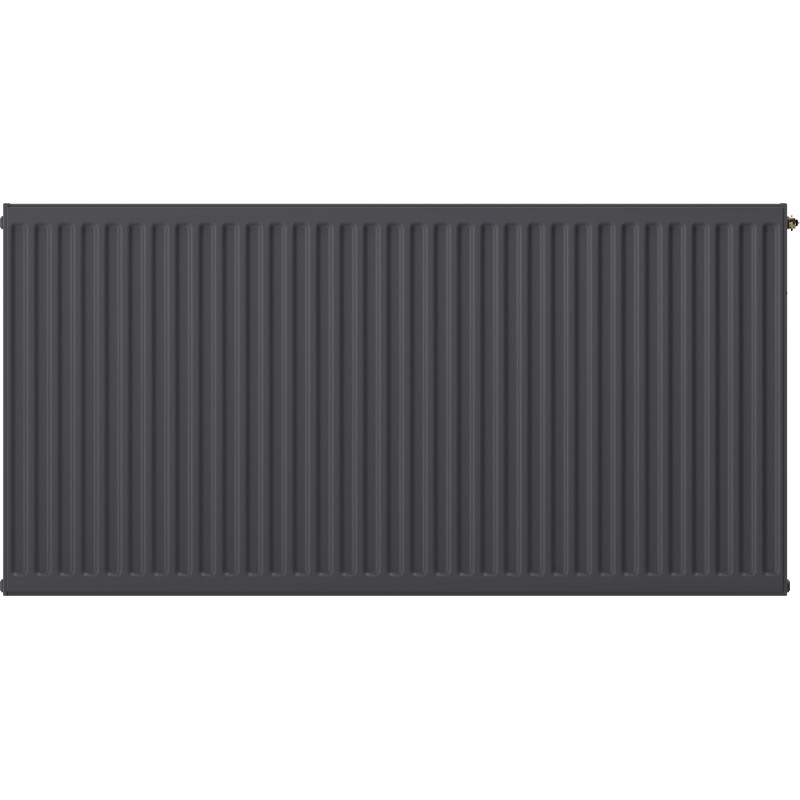

Photos show a radiator in the size 600 x 1200 mm.
