Mexen C11 plate radiator 300 x 1300 mm, side connection, 636 W, anthracite - W411-030-130-66
The Mexen C11 plate radiator is an elegant and efficient heating element that fits perfectly into any interior. It offers dimensions of 300 x 1300 mm and a side connection 4xG ½″, which makes installation easy. Made of steel with a high-quality paint coating, it is durable and resistant to damage. In anthracite color (RAL 7016), it is ideal for modern spaces. With a heating power up to 802 W at 90/70/20°C, it provides comfortable warmth. The maximum operating temperature is 110°C, and the operating pressure reaches 10 bar. The set includes hangers, installation kit, plugs, and an air vent. A guarantee of style and functionality.

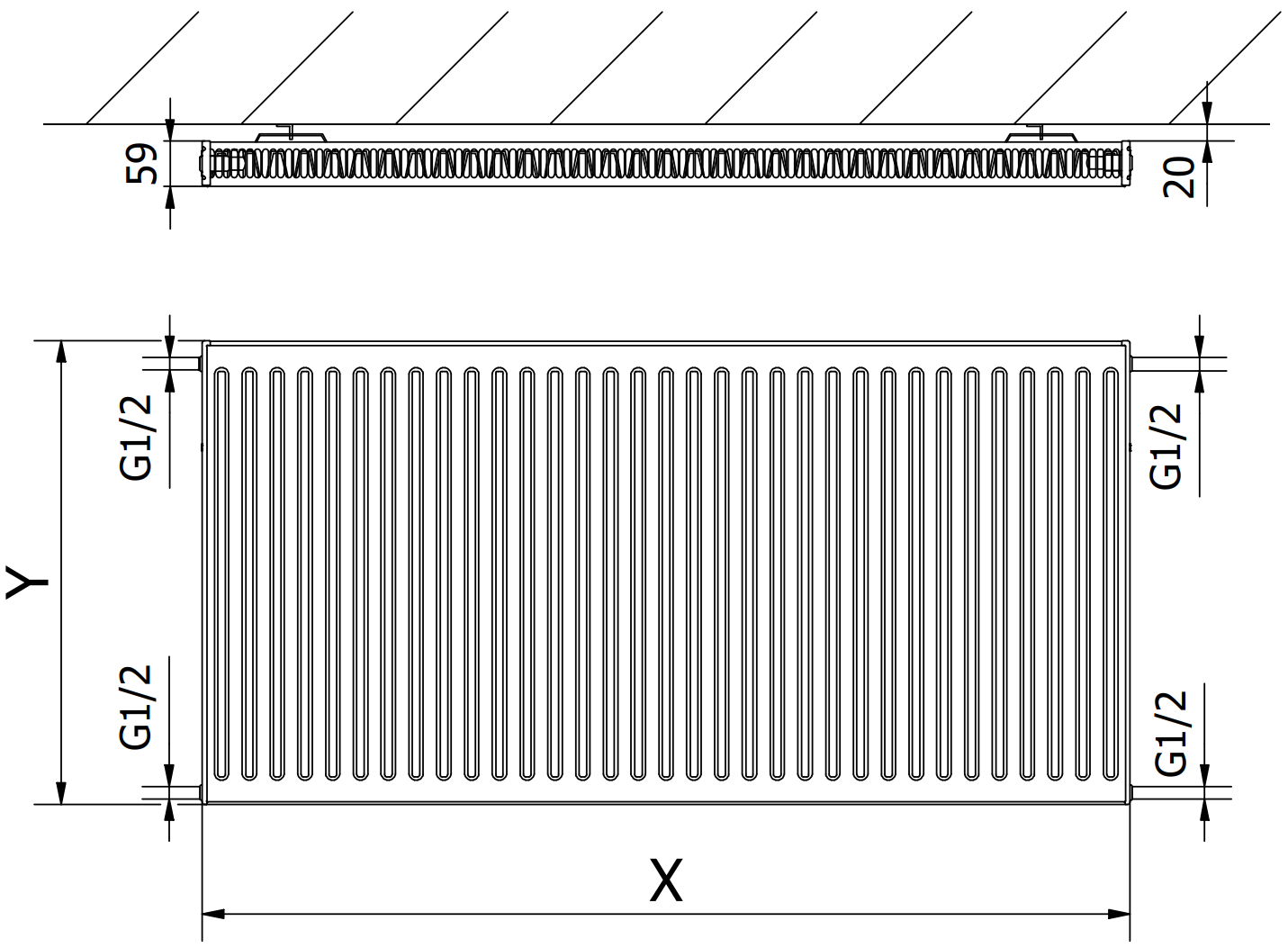

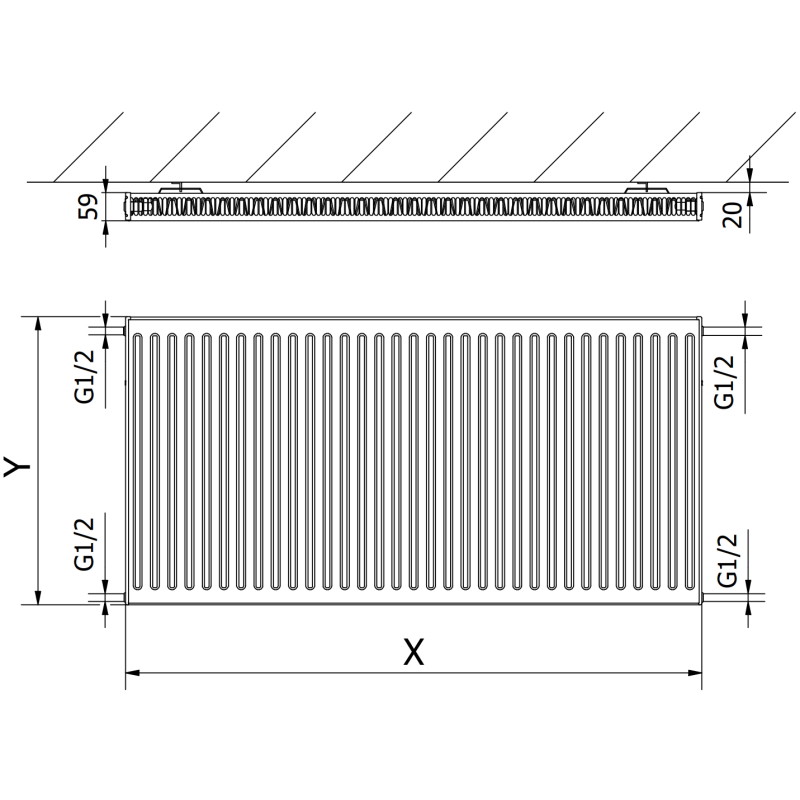

Technical data:
Height (Y): 300 mm
Width (X): 1300 mm
Depth: 59 mm
Connection spacing: 25 cm
Vertical water channel spacing: 33.3 mm
Color: Anthracite RAL 7016
Material: Steel
Operating temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 331 W
- 75/65/20 °C 636 W
- 90/70/20 °C 802 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Comes with a side cover and removable top cover
Includes: hangers, installation kit, sealing plugs, and air vent

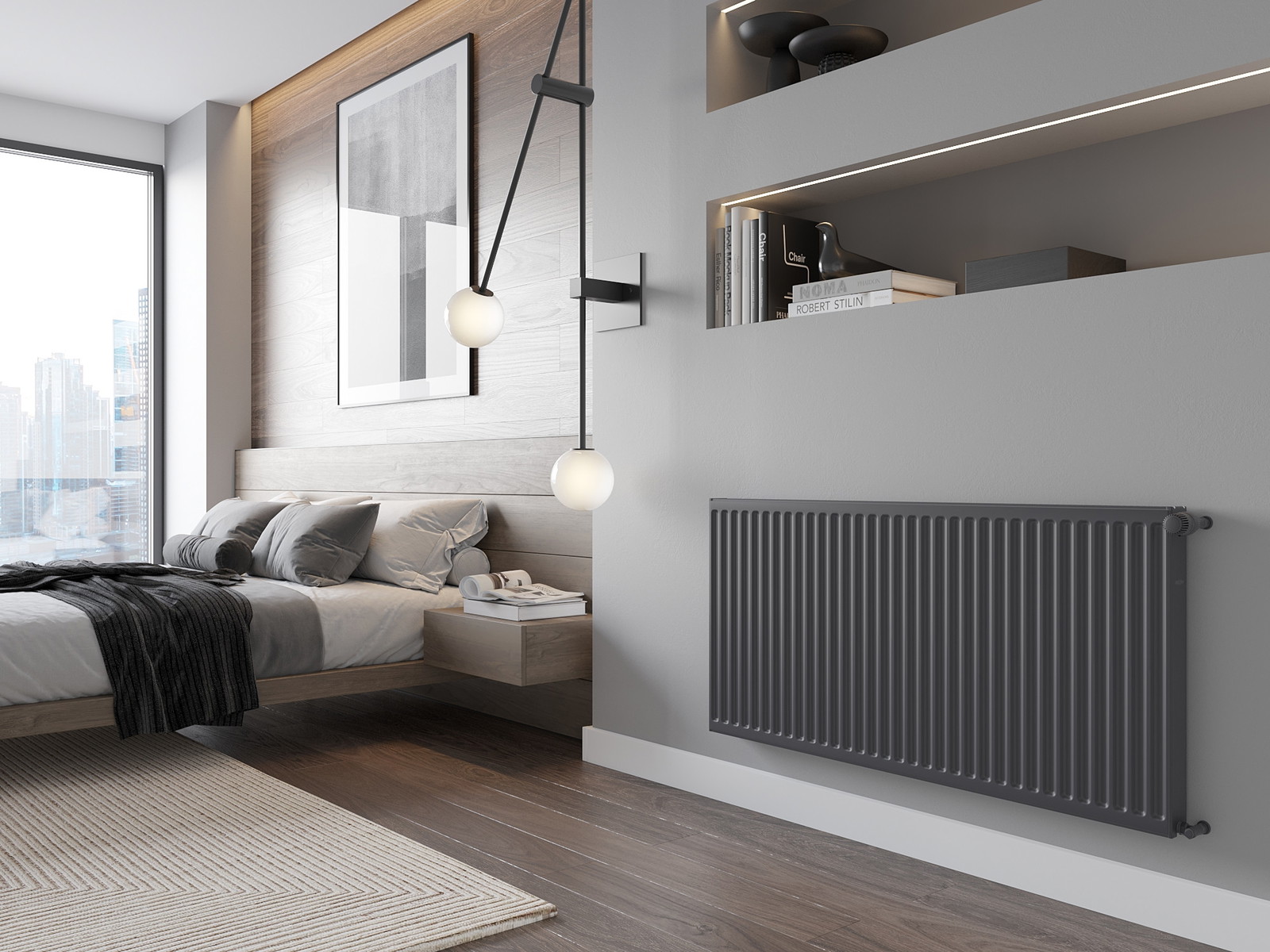

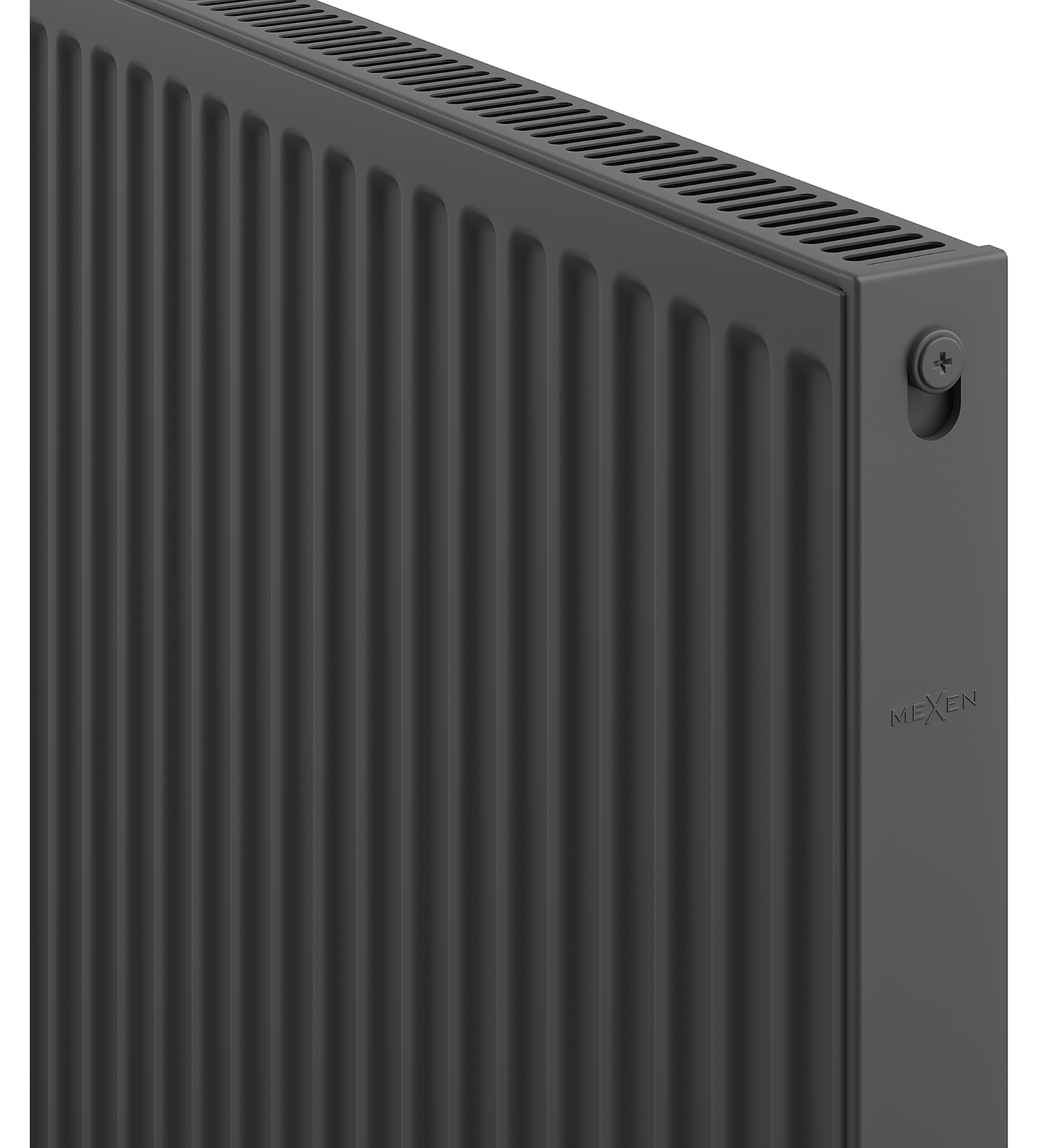

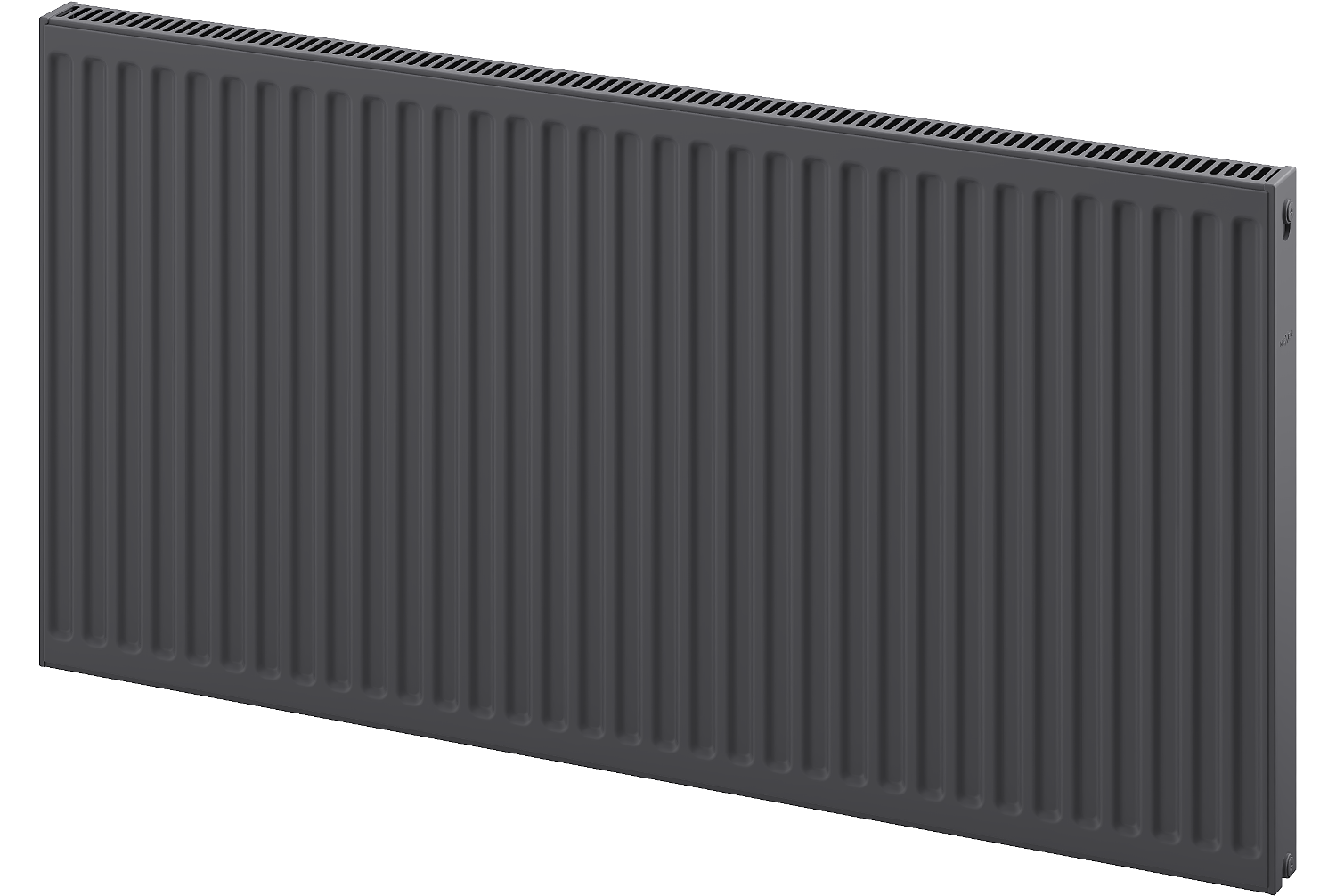

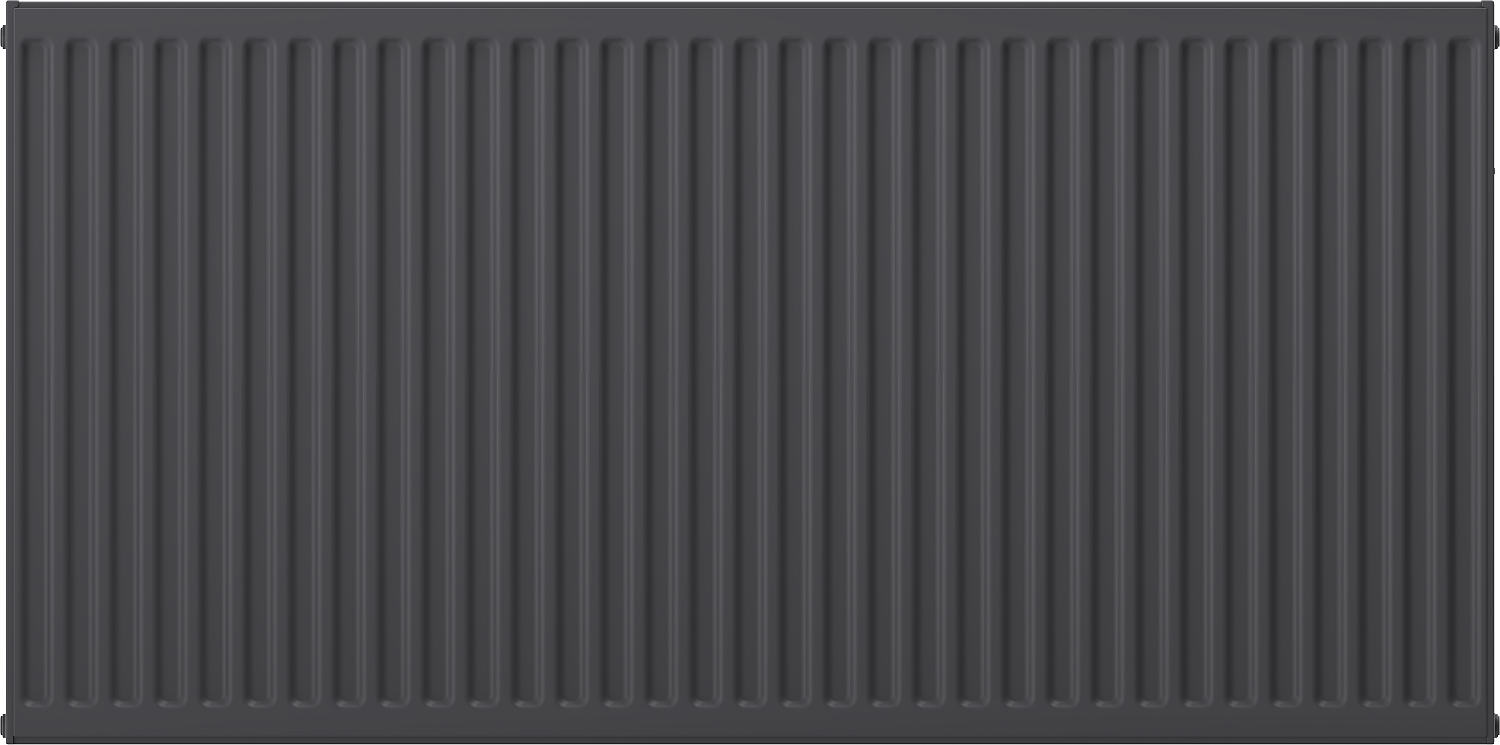

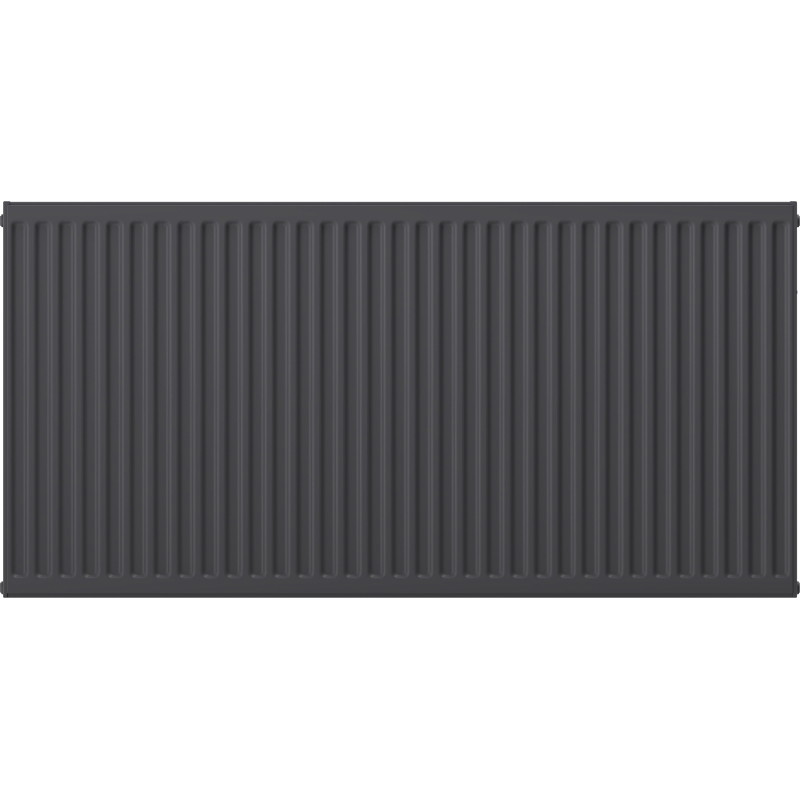

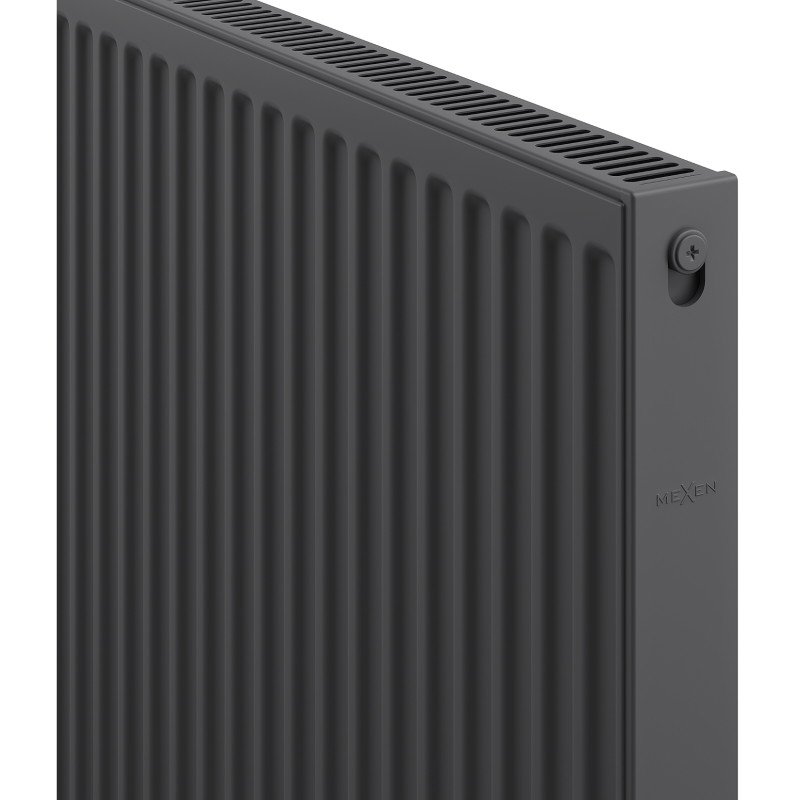

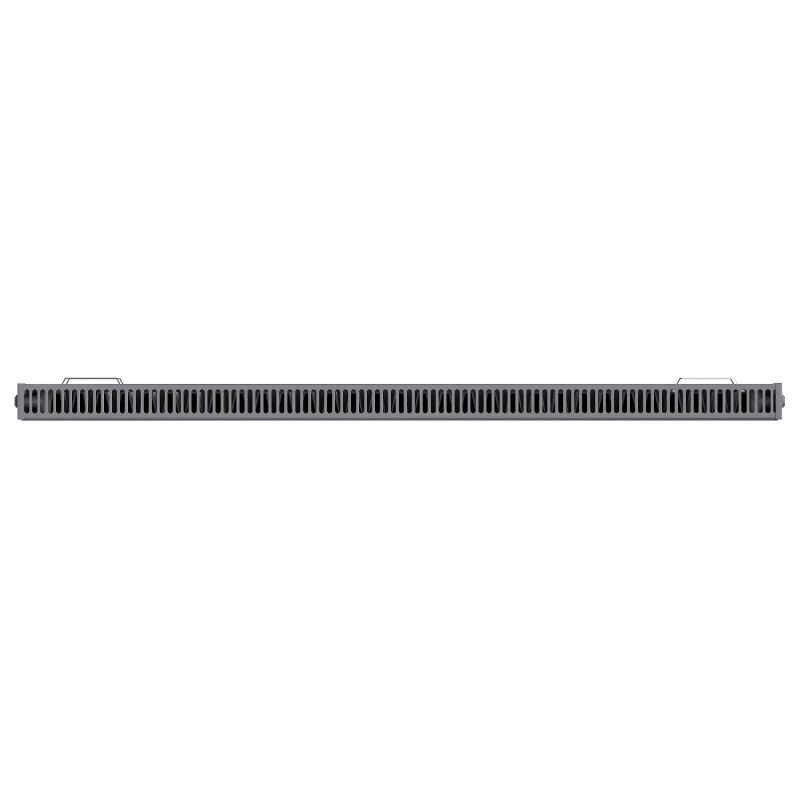

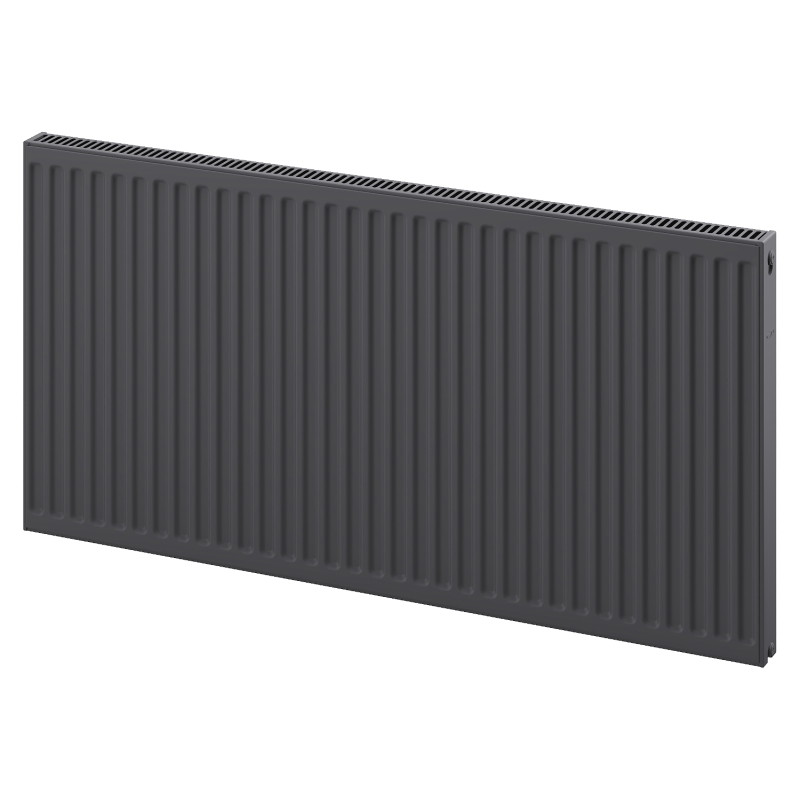

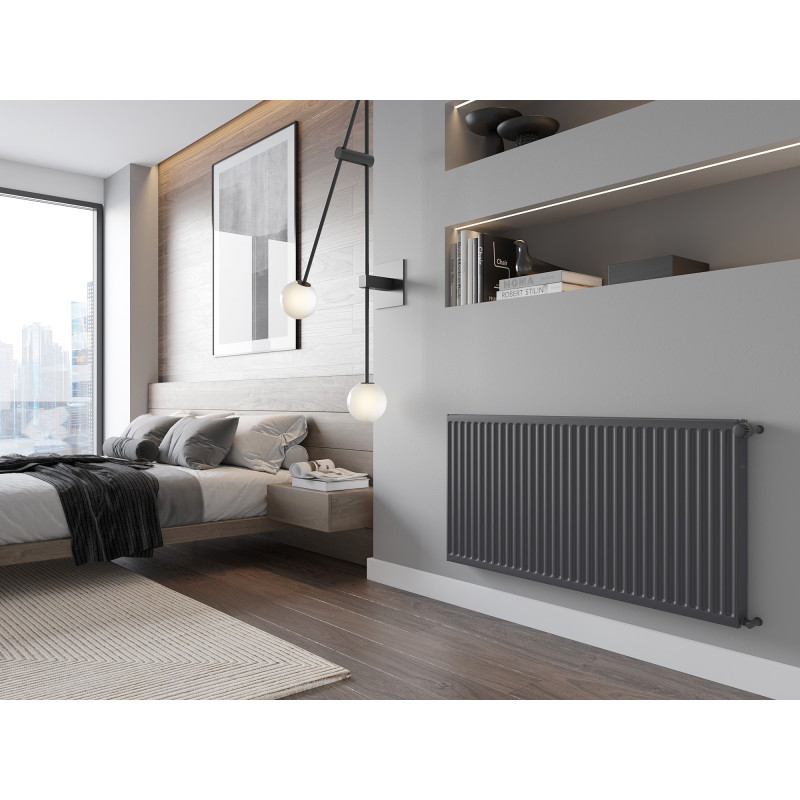

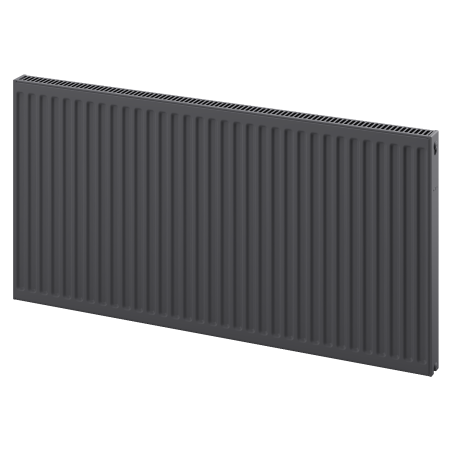

Photos show a radiator in the size of 600 x 1200 mm.
